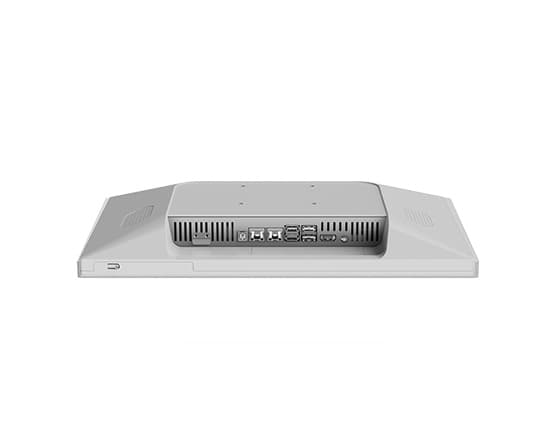

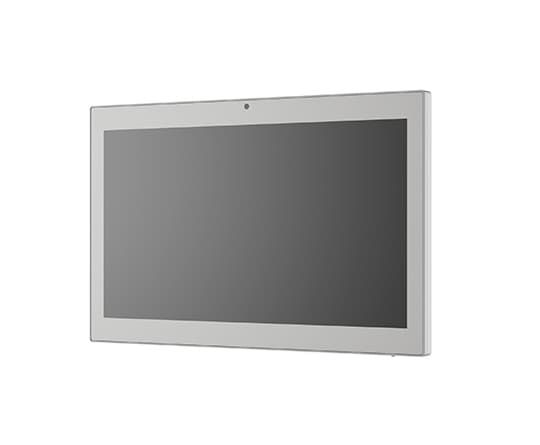

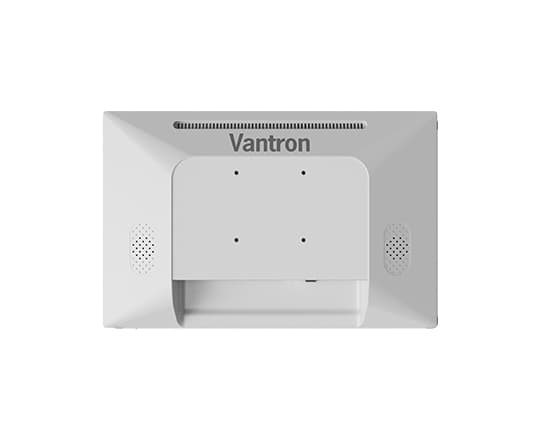

TPC156-RK66 15.6“ Android All-in-one Panel PC
TPC156-RK66 15.6“ Android All-in-one Panel PC
TPC156-RK66 15.6“ Android All-in-one Panel PC
TPC156-RK66 15.6“ Android All-in-one Panel PC
TPC156-RK66 15.6“ Android All-in-one Panel PC
TPC156-RK66 15.6“ Android All-in-one Panel PC
TPC156-RK66 15.6“ Android All-in-one Panel PC
TPC156-RK66 15.6“ Android All-in-one Panel PC

TPC156-RK66 15.6“ Android All-in-one Panel PC

◆ RK3566 Quad-core high-performance processor
◆ Android 11 system, Linux distributions available
◆ 15.6-inch TFT LCD, 10-point PCAP touch screen
◆ ETH/Wi-Fi/BT/4G LTE supported
◆ 5MP front camer
◆ Gigabit Ethernet ports
◆ Sleek appearance, flexible installation (horizontal, vertical, desktop, wall mounting, floor mounting)


Description
Specifications
Documentation

Vantron TPC156-RK66 is a 15.6” desktop all-in-one panel PC, powered by RK3566 quad-core high-performance processor. It features a 15.6-inch 10-point PCAP touch screen with 16:9 aspect ratio, delivering full HD images. TPC156-RK66 offers rich interfaces for connection of different peripherals and displays, making it very suitable for application in self-service kiosks and multi-media terminals. The VESA pattern also enable users to mount and maintain the device more flexibly for industrial control.


Vantron TPC series all-in-one panel PCs offer an overall solution that integrates the touchscreen monitor, display, processor, and software operating system, making them a first choice in IoT applications.

Specifications
CPU
Rockchip RK3566, Quad-core ARM Cortex-A55, 1.8GHz (Max.)
Memory
2GB (Optional: 4GB)
Storage
16GB (Optional: 32GB)
Ethernet
1 x RJ45, 10/100/1000Mbps
Wi-Fi & Bluetooth
2.4GHz & 5GHz 802.11 a/b/g/n/ac + BT 5.0 and later
Cellular
Optional: 4G LTE (CAT 4)
Display
15.6" TFT LCD
Resolution
1920 x 1080 @60Hz
Brightness
300 nits
Contrast ratio
800:1
Aspect ratio
16:9
Viewing angle
89/89/89/89 (U/D/L/R)
External display
1 x HDMI, up to 4K @60Hz
TP
10-point PCAP touch screen
Surface treatment
Anti-fingerprint
Optional
Anti-glare & anti-reflection
Surface hardness
6H
Cover lens
At least IK03 rated
Camera
Front camera, 5MP
Audio
1 x 3.5mm combo audio jack 2 x 2W Speaker
USB
4 x USB 2.0 Type-A (OTG supported on the top right interface) 1 x USB 3.0 Type-A
RTC
Supported, scheduled on/off supported
WDT
Supported
Button
1 x ON/OFF button
LED indicator
1 x Power indicator
OS
Android 11 (GMS certified) Optional: Yocto (VT UI)
Device management platform
BlueSphere MDM (Android version only)
OTA tool
BlueSphere OTA
Input
12V DC 1 x 3-pin power terminal
Consumption
< 25W
Material
Plastic, white (optional: Black)
Dimensions
381.2mm x 246.6mm x 47.2mm
Installation
VESA mounting (75mm x 75mm)
Protective features
IP54 (front side only)
Heat dissipation
Fanless (Heatsink)
Temperature
Operating: 0℃~+40℃ Storage: -20℃~+60℃
Certification
CCC, FCC
Documentation
Vantron TPC156-RK66 15.6” All-in-one Panel PC Datasheet - V1.5.pdf
TPC156-RK66 15.6” All-in-one Panel PC Datasheet
