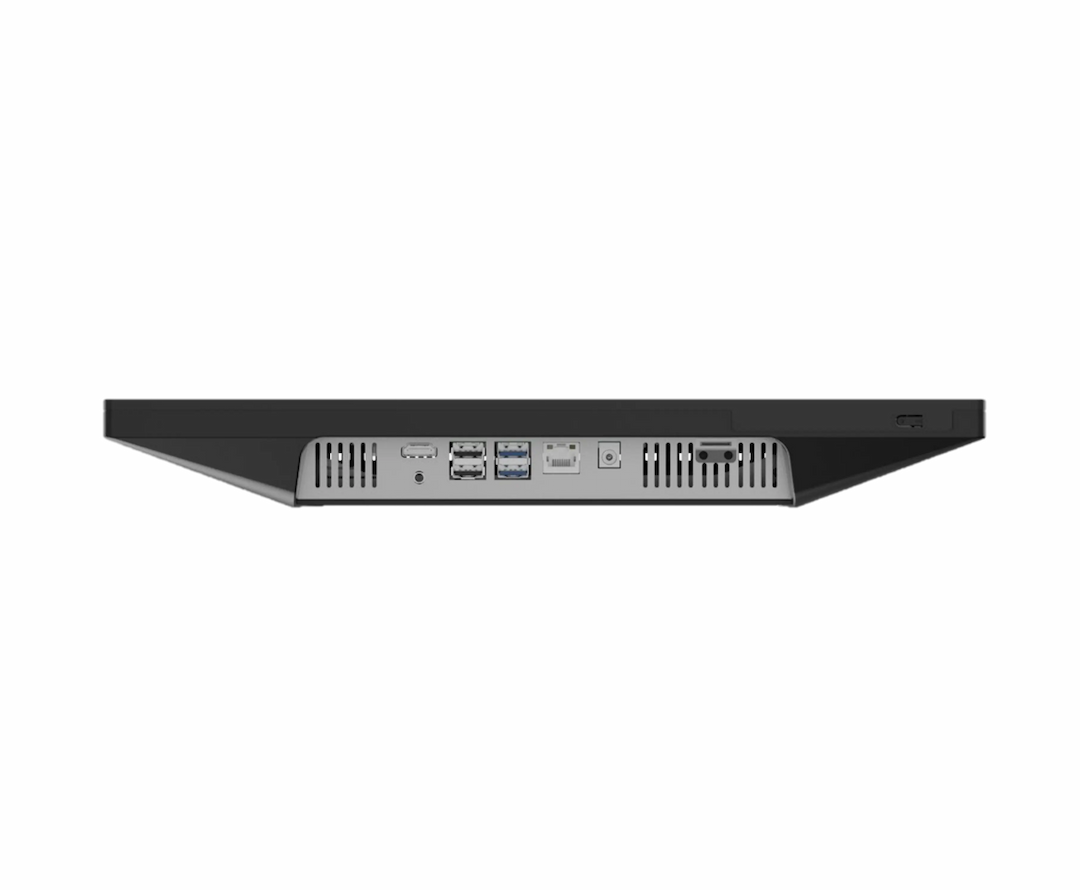

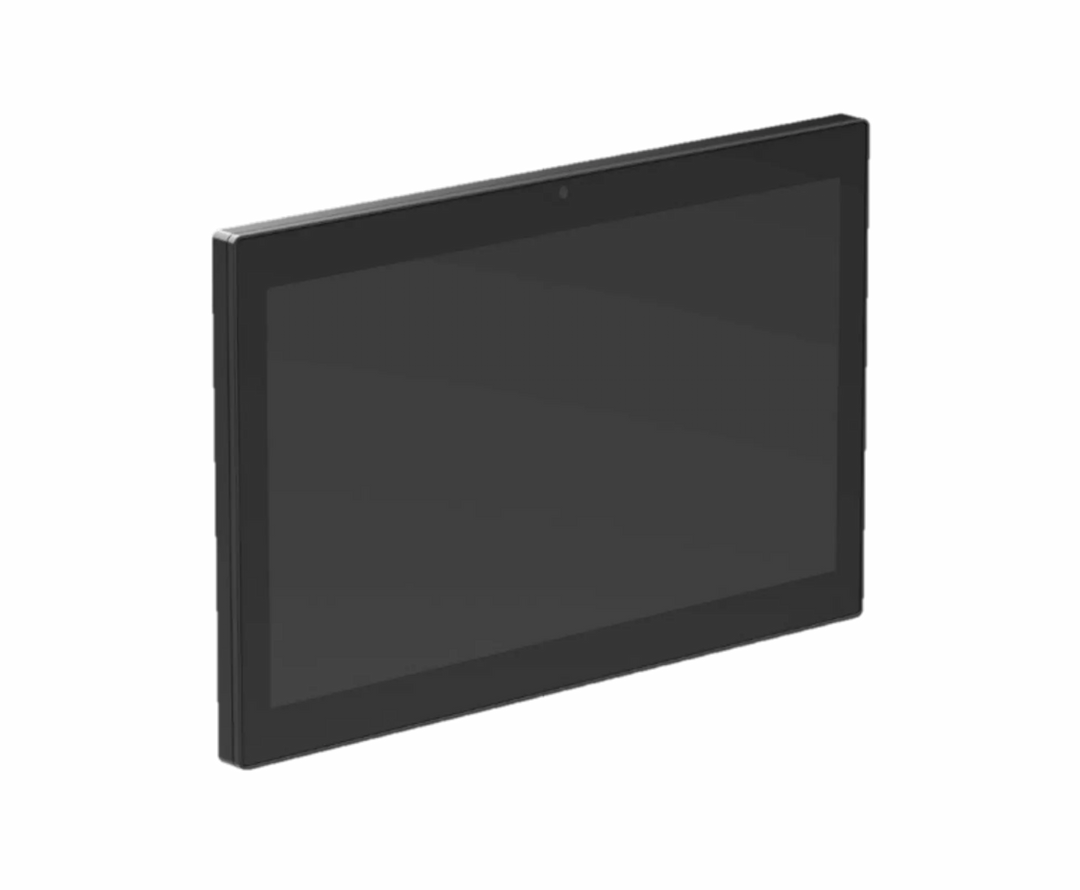

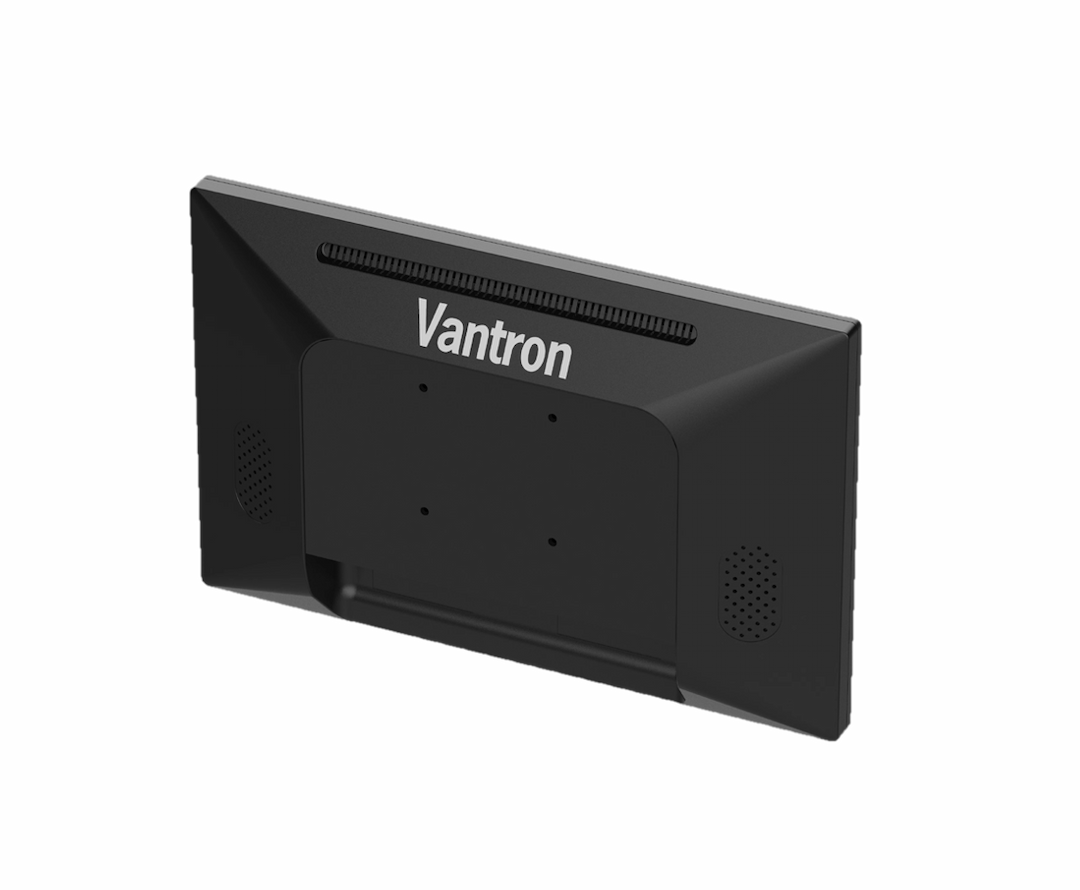

TPC156-APL 15.6“ Windows All-in-one Panel PC

◆ Intel Atom® E3940 Quad-core high-performance processor
◆ Windows 10 IoT system, Linux distributions available
◆ 15.6-inch TFT LCD, 10-point PCAP touch screen
◆ 5MP front camera
◆ Ethernet/Wi-Fi/Bluetooth/4G LTE supported
◆ Dual gigabit Ethernet ports
◆ Sleek appearance, flexible installation (horizontal, vertical, desktop, wall mounting, floor mounting)

Description
Specifications
Documentation

Vantron TPC156-APL is a 15.6” desktop all-in-one panel PC, powered by the high-performance Intel Apollo Lake processor. It features a 15.6-inch 10-point PCAP touchscreen monitor with 16:9 aspect ratio, delivering full HD images. TPC156-APL offers multiple configuration options. Its rich interfaces allow for connection of different peripherals and displays, making it very suitable to be applied in self-service kiosks and multi-media terminals. The VESA patterns also enable users to mount and maintain the device more flexibly for industrial control.


Vantron TPC series all-in-one panel PCs offer an overall solution that integrates the touchscreen monitor, display, processor, and software operating system, making them a first choice in IoT applications.

Specifications
CPU
Intel Atom®, APL-I E3940 Quad-core processor, 1.8GHz (Max.)
Memory
4GB (Optional: 8GB)
Storage
128GB (Optional: 256GB)
Ethernet
2 x RJ45, 10/100/1000Mbps
Wi-Fi & BT
2.4GHz & 5GHz 802.11 a/b/g/n/ac + BT 5.0 and later
Cellular
Optional: 4G LTE (CAT 4)
Display
15.6-inch TFT LCD
Resolution
1920 x 1080 @60Hz
Brightness
300 nits
Contrast ratio
800:1
Aspect ratio
16:9
Viewing angle
80/80/80/80 (U/D/L/R)
External display
1 x HDMI, up to 4K @30Hz
TP
10-point PCAP touch screen
Surface treatment
Anti-fingerprint
Optional
Anti-glare & anti-reflection
Surface hardness
6H
Cover lens
At least IK03 rated
Light transmittance ratio
> 85%
Camera
Front camera, 5MP
Audio
1 x 3.5mm combo audio jack Built-in dual-track speakers (2 x 2W)
USB
2 x USB 3.0 Type-A 2 x USB 2.0 Type-A
RTC
Supported, scheduled on/off supported
RTC
Supported, scheduled on/off supported
WDT
Supported
SIM slot
1 x SIM slot
Button
1 x ON/OFF button
LED indicator
1 x LED indicator (Power and system status)
OS
Windows 10 IoT Optional: Linux
OTA tool
BlueSphere OTA
Input
12V DC 1 x DC jack
Consumption
< 30W
Dimensions
381.2mm x 246.6mm x 47.2mm
Installation
VESA mounting (75mm x 75mm)
Protective features
IP54 (front side only)
Heat dissipation
Fanless (Heatsink)
Temperature
Operating: 0℃ ~ +40℃ Storage: -20℃ ~ +60℃
Humidity
RH 0-90% (Non-condensing)
Touch life
> 50 million touches
Certification
CCC, FCC
Light transmittance ratio
>85%
Documentation
Vantron TPC156-APL 15.6” All-in-one Panel PC Datasheet - V1.5.pdf
TPC156-APL 15.6” All-in-one Panel PC Datasheet
