TPC101-RK99 10.1" Android All-in-one Panel PC

◆ RK3399 Hex-core high-performance processor
◆ Android 10 system, Linux distributions available
◆ 10.1-inch TFT LCD, 10-point PCAP touch screen

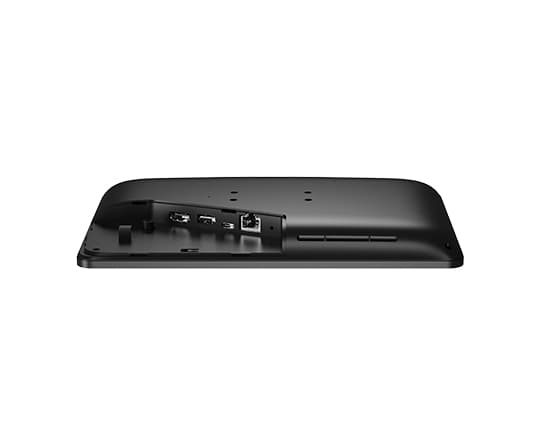

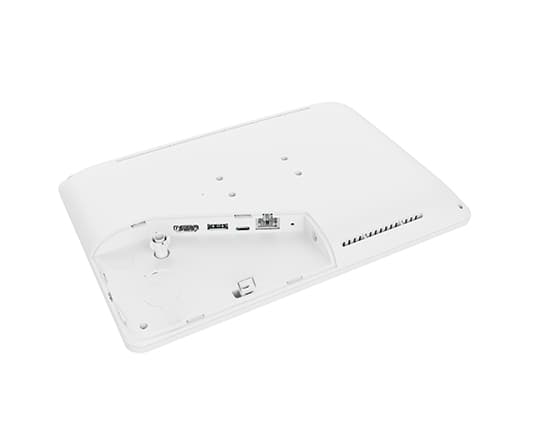

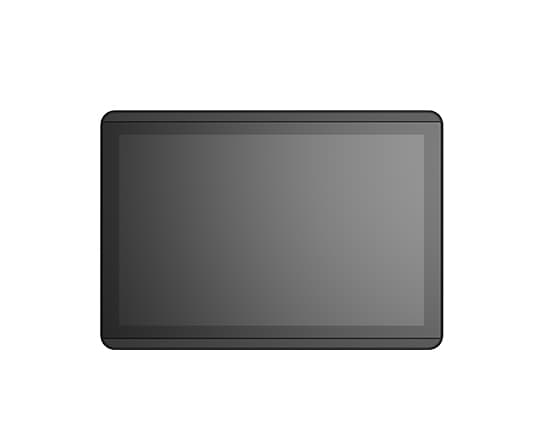

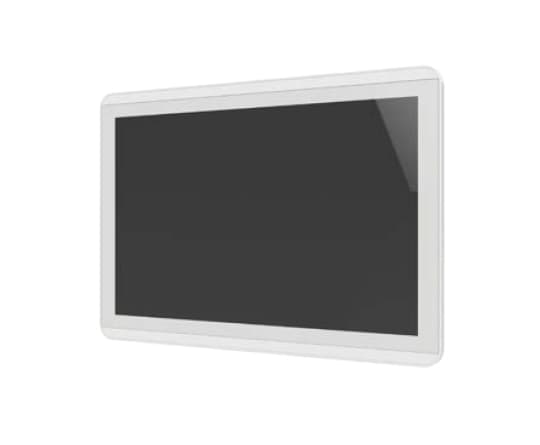

◆ White enclosure by default, optional black
◆ ETH/Wi-Fi/Bluetooth connectivity
◆ Gigabit Ethernet port, PoE supported
◆ Sleek appearance, flexible installation (horizontal, vertical, desktop, wall mounting, floor mounting)

Description
Specifications
Documentation

Vantron TPC101-RK99 is a 10.1” desktop all-in-one panel PC, powered by RK3399 hex-core high-performance processor. It features a 10-point PCAP touchscreen monitor with 16:10 aspect ratio and runs Android 10 operating system with Linux distributions available. TPC101-RK99 offers rich interfaces for connection of different peripherals and displays, and this makes it very suitable for application in self-service kiosks and multi-media terminals. The VESA pattern also allows for more flexible mounting and maintenance for application in medical scenarios.


Vantron TPC series all-in-one panel PCs offer an overall solution that integrates the touchscreen monitor, display, processor, and software operating system, making them a first choice in IoT applications.

Specifications
Product Name
TPC101-RK99 10.1" Android All-in-one Panel PC
CPU
Rockchip RK3399, dual-core ARM Cortex-A72 1.8GHz and quad-core ARM Cortex-A53 processor, 1.4GHz
Memory
2GB LPDDR4 (Optional: 4GB)
Storage
16GB eMMC (Optional: 32GB)
Ethernet
1 x RJ45, 10/100/1000Mbps (self-adaptive), PoE supported
Wi-Fi & BT
Dual-band Wi-Fi 802.11 a/b/g/n/ac + BT 4.0 or later
Display
10.1-inch TFT LCD
Resolution
1920 x 1200 @60Hz
Contrast ratio
800:1
Aspect ratio
16:10
Brightness
300 nits
Viewing angle
80/80/80/80 (U/D/L/R)
External display
1 x HDMI, up to 4K @30Hz
TP
10-point PCAP touch screen
Surface treatment
Anti-fingerprint
Surface hardness
6H
Cover lens
At least IK03 rated
Optional
Anti-glare & anti-reflection
Light transmittance ratio
>85%
Camera
Front camera, 5MP
Audio
Built-in dual-track speakers (2 x 1W)
USB
1 x USB 2.0 Type-A 1 x USB 2.0 Type-C (OTG)
RTC/WDT
Supported
Button
1 x Reset button
OS
Android 10 Optional: Linux
Device management platform
BlueSphere MDM (Android version only)
OTA tool
BlueSphere OTA
Input
12V DC 1 x Power jack
Material
Plastic, white (Optional: Black)
Dimensions
244.81mm x 171.30mm x 25.46mm
Installation
VESA mounting (20mm x 50mm)
Heat dissipation
Fanless
Temperature
Operating: 0℃~+40℃ Storage: -20℃~+60℃
Humidity
RH 10%-90% (Non-condensing)
Touch life
> 50 million touches
Certification
CCC, FCC
Documentation
Vantron TPC101-RK99 10.1” All-in-one Panel PC Datasheet - V1.6.pdf
