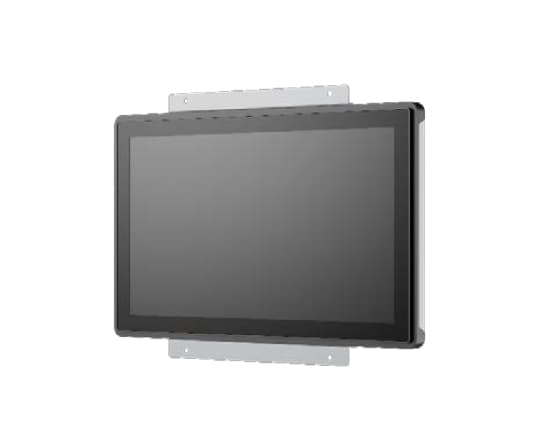

TMO133 13.3” Open-frame Touchscreen Monitor
TMO133 13.3” Open-frame Touchscreen Monitor
TMO133 13.3” Open-frame Touchscreen Monitor
TMO133 13.3” Open-frame Touchscreen Monitor

TMO133 13.3” Open-frame Touchscreen Monitor

◆ 13.3” TFT LCD, 10-point PCAP touchscreen
◆ Full HD video output
◆ AR/AG touch screen available
◆ Flexible installation
◆ Excellent longevity (50,000H MTBF)
◆ Vanity free, easy integration

Description
Specifications
Documentation

Vantron Technology offers open-frame touchscreen monitors that vary in screen size from 7 inches to 27 inches and resolution from 1024 x 600 to 1920 x 1080. When used with Vantron embedded computers, such touchscreen monitors will offer more flexible solutions for customers to meet the requirements of application in different scenarios such as industrial control, health care, education, retail, transportation, and finance.


TMO133 open-frame touchscreen monitor applies a 13.3-inch screen and features quick response time, large visible area and viewing angle to optimize the display performance. The screen is designed to be anti-fingerprint, and users have the option to equip the touchscreen with anti-glare and anti-reflection coatings that offer excellent visual experience and improve human-machine interaction accuracy. Moreover, TMO133 offers flexible installation options and OSD controls to enhance user experience.

Specifications
Model
TMO133
Diagonal size
13.3" TFT LCD with LED backlight
Aspect ratio
16:9
Resolution
1920 x 1080
Brightness
450 nits
Contrast ratio
1000:1
Number of colors
16.7M
Brightness
450 nits
Active area
293.76mm × 165.24mm
Contrast ratio
1000:1
Number of colors
16.7M
Response time
10ms
Touch point
10-point PCAP touchscreen
Touch control
Finger, stylus pen
Cover lens thickness
2mm
Surface treatment
Anti-fingerprint Tempered glass Anti-glare (Gloss 80 ± 10)
Light transmittance ratio
>85%
Touch communication interface
USB 2.0
Video interface
1 x VGA 1 x HDMI
Audio interface
1 x Line in (Optional)
Dimensions
336.5mm x 208.2mm x 40.1mm (without brackets)
Weight
2.9kg
Installation
VESA mount (75 x 75mm) Side bracket mount
OSD
Built-in OSD (set up with OSD keys) Controls: Menu, Up, Down, Back, Power
Power input
12V DC
Power consumption
<14W
Language
Chinese and English
Adjustment of brightness, contrast ratio and color temperature
Supported
Temperature
Operating: 0℃~+40℃ Storage: -20℃~+60℃
Humidity
RH 10%~90% (non-condensing)
MTBF
50,000 hours
Warranty
3 years
ESD
ESD: ±4KV (contact) and ±8KV (air)
Certificate
CCC, FCC, CE, UL
Product Name
TMO133 13.3” Open-Frame Touchscreen Monitor
Documentation
Vantron TMO133 13.3“ Open-frame Touchscreen Monitor Datasheet - V1.6.pdf
TMO133 13.3” Open-frame Touchscreen Monitor Datasheet
