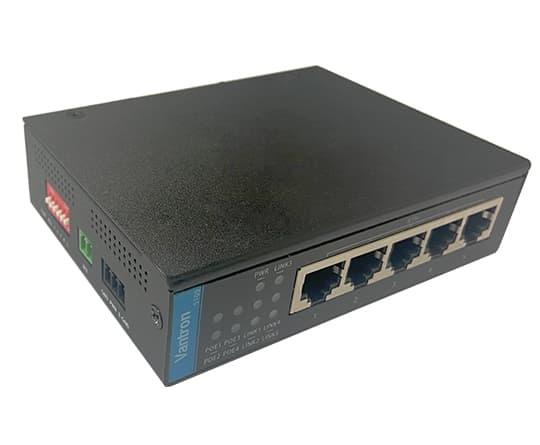

S105 5-port Magabit Unmanaged industrial Switch

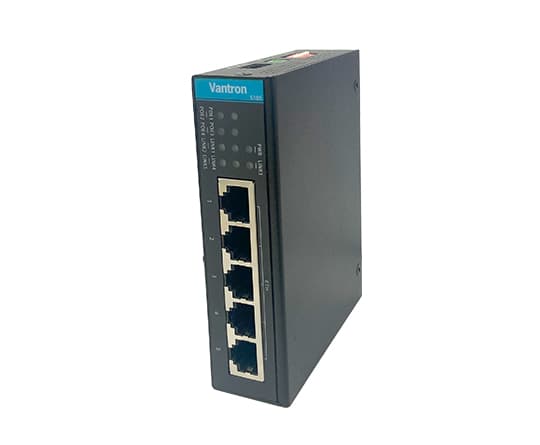

S105 5-port Magabit Unmanaged industrial Switch

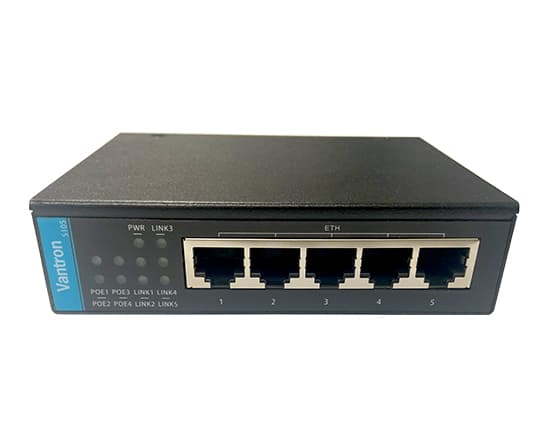

S105 5-port Magabit Unmanaged industrial Switch
S105 5-port Magabit Unmanaged industrial Switch
S105 5-port Magabit Unmanaged industrial Switch
S105 5-port Magabit Unmanaged industrial Switch
S105 5-port Magabit Unmanaged industrial Switch
S105 5-port Magabit Unmanaged industrial Switch

S105 5-port Magabit Unmanaged industrial Switch

Plug and play
Adaptive full/half duplex Ethernet jacks
PoE option supported
Alarm relay
Prolonged longevity
Efficient fanless heat dissipation
Wide input voltage & temperature range
Compact size, easy to deploy

Description
Specifications
Documentation

The S105 unmanaged industrial switch enriches Vantron’s hardware solutions for industrial automation. It features 5 Megabit Ethernet jacks, providing an efficient and reliable solution for industrial networking needs.

The S105 is a Plug-and-Play solution that minimizes users’ educational inputs. Its compact and space-saving design makes it a preference for users who value networking efficiency. It supports a 12V~48V wide input voltage and operates at an industrial-grade extended temperature range (-20℃ ~ +75℃), ensuring excellent performance even under demanding conditions. It offers PSE options to provide up to 30W power output to client devices. It also offers an option for the PD feature to receive power supply from a PSE. A DIN rail bracket is attached to the back of the enclosure for flexible installation of the device.

Switches are usually used in harsh environments that require stable operation and involve data interaction between a range of devices, and the S105 is particularly designed for rail transit, smart city, intelligent mining, etc.

Specifications
Interface
5 x RJ45, 10/100M Base-T (X), automatic flow control, adaptive full/half duplex
Standard
IEEE802.3 IEEE802.3u IEEE802.3x (flow control)
PSE (optional)
IEEE 802.3af, IEEE 802.3at ETH 1~ ETH 4 (Max. 30W power output in total)
PD (optional)
Eth 5
Forwarding mode
Store-and-forward
MAC address table
1K
Switching capability
1Gbps
Packet forwarding rate
0.75Mpp
Packet buffer
1Mb
Alarm relay
1 x 2-pin x 3.81mm
LED indicator
1 x Power indicator (solid green after power on) 4 x PoE indicator (corresponding to ETH 1~ ETH 4) 5 x Network indicator (slow blinking for link; fast blinking for data transfer)
DIP switch
1 x DIP switch (multi-/single-jack connection check)
Dimensions
115mm x 87mm x 30mm
Installation
DIN rail mounting
MTBF
≥30,000 H
IP rating
IP40
Input
12V~48V DC (48V-53.2V DC for PSE feature), 1 x 3-pin x 3.81mm terminal block (Over-current protection, reverse polarity protection)
Consumption
< 32.1W (with four S105 connected)
Temperature
Operating: -20℃ ~ +75℃ Storage: -40℃ ~ +85℃
Humidity
Operating: RH 5-95% (Non-condensing)
EMC level
> EMC Level 3
Certification
CCC, FCC, RoHS
Industrial standard
IEC61000-4-2 (ESD): ±6kV (contact), ±8kV (air) IEC61000-4-4 (EFT): Power: ±2kV, Signal: ±1kV IEC61000-4-5 (Surge): Power: ±1kV (differential), ±2kV (common), Signal: ±1kV (differential), ±2kV (common) IEC60068-2-6 (Vibration) IEC60068-2-27 (Shock) IEC60068-2-32 (Free fall)
Documentation
Vantron S105 Unmanaged Industrial Switch Datasheet -V1.5.pdf
Vantron S105 Unmanaged Industrial Switch Datasheet
Vantron S105 Unmanaged Industrial Switch User Manual- V1.2.pdf
Vantron S105 Unmanaged Industrial Switch User Manual
