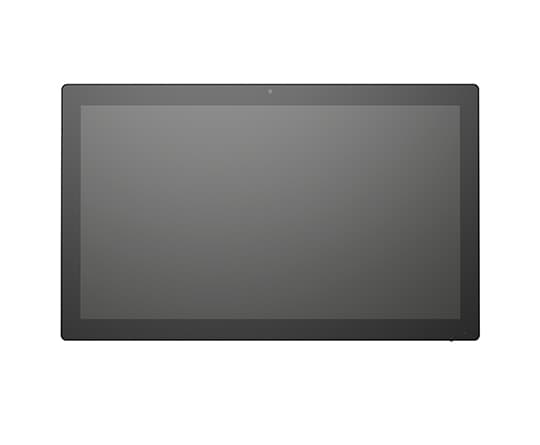

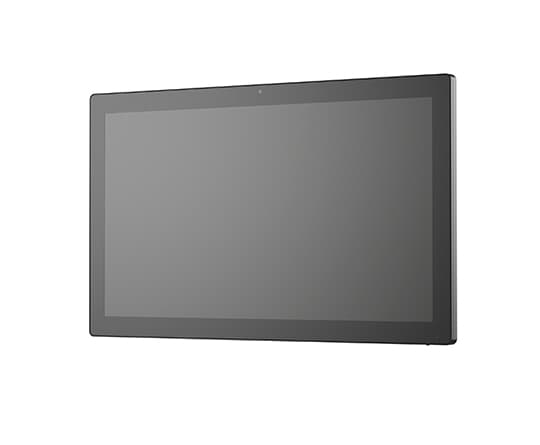

TPC215-RK3588 215"Android/Linux All-in-one Panel PC

TPC215-RK3588 215"Android/Linux All-in-one Panel PC

◆ RK3588 Octa-core high-performance processor
◆ Android 12 and later, Linux distributions available
◆ 21.5-inch TFT LCD, 10-point PCAP touch screen
◆ 5MP front camera, optional facial recognition
◆ Dual-band Wi-Fi, Wi-Fi 6 supported
◆ Dual gigabyte ethernet ports
◆ Sleek appearance, flexible installation (horizontal, vertical, desktop, wall mounting, floor mounting)

Description

Specifications

Documentation

Vantron TPC215-RK3588 is a 21.5” desktop all-in-one panel PC, powered by RK3588 octa-core high-performance processor. It features a 21.5-inch 10-point PCAP touchscreen monitor with 16:9 aspect ratio and runs Android 12 operating system with Linux distributions available. TPC215-RK3588 offers rich interfaces for connection of different peripherals and displays. It is very suitable to be applied in self-service kiosks and multi-media terminals. The VESA pattern allows users to mount and maintain the device more flexibly for industrial control.

Vantron TPC series all-in-one panel PCs offer an overall solution that integrates the touchscreen monitor, display, processor, and software operating system, making them a first choice in IoT applications.

Specifications

Product Name

TPC215-RK3588 21.5" Android All-in-one Panel PC

CPU

Rockchip RK3588, Quad-core ARM Cortex A76 + Quad-core ARM Cortex A55 processor, 2.4GHz (Max.)

Memory

8GB (Optional: 4GB)

Storage

32GB (Optional: 64GB); Optional: Expansion by an M.2 M-Key/B-Key

Ethernet

2 x RJ45, 10/100/1000Mbps

Wi-Fi & BT

Dual-band Wi-Fi 802.11 a/b/g/n/ac/ax + BT 5.0 and later

Cellular

Optional: Expansion by an M.2 B-Key for 4G LTE (CAT 4)

Display

21.5-inch TFT LCD

Resolution

1920 x 1080 @60Hz

Contrast ratio

1000:1

Aspect ratio

16:9

Brightness

250 nits

Viewing angle

89/89/89/89 (U/D/L/R)

External display

1 x HMDI, up to 4K @60Hz

10-point PCAP touch

Surface treatment

Anti-fingerprint

Surface hardness

Cover lens

At least IK03 rated

Optional

Anti-glare & anti-reflection

Light transmittance ratio

> 85%

Camera

Front camera, 5MP

Audio

1 x 3.5mm combo audio jack Built-in dual-track speakers (2 x 2W)

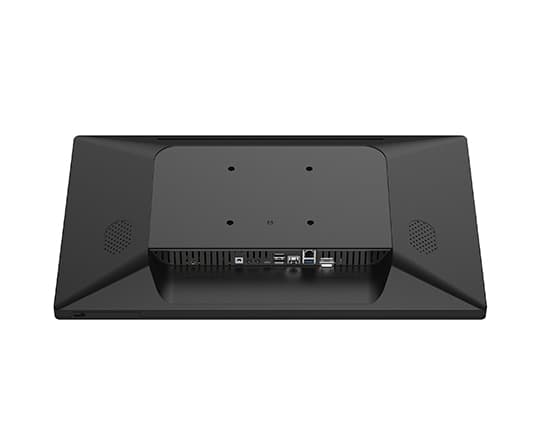

USB

1 x USB 3.0 Type-C 1 x USB 3.0 Type-A 2 x USB 2.0 Host, Type-A

RTC

Supported, scheduled on/off supported

WDT

Supported

SIM slot

1 x SIM slot

Expansion

1 x M.2 M-Key 2260/2280, PCIe 3.0 x 4, for SSD expansion 1 x M.2 B-Key 2242/3052, USB3.0/SATA3.0, for SSD/4G LTE expansion

Button

1 x ON/OFF button

LED indicator

1 x LED indicator (Power and system status)

Android 12 or later

Device management platform

BlueSphere MDM

OTA too

BlueSphere OTA

Input

12V/24V DC 1 x Power jack

Consumption

< 35W

Dimensions

526mm x 322.7mm x 52.9mm

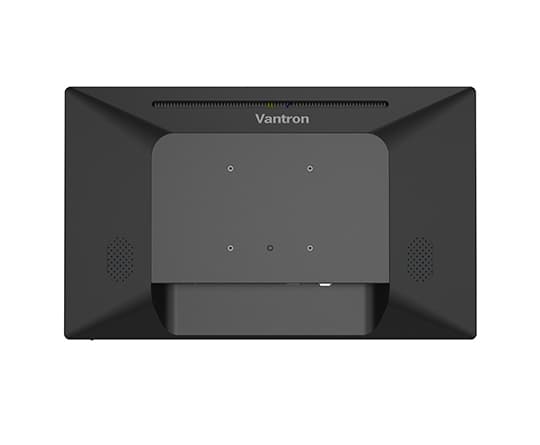

Installation

VESA mounting (100mm x 100mm)

Protective features

IP54 (front side only)

Heat dissipation

Fanless (Heatsink, housing)

Temperature

Operating: 0℃ ~ +40℃ Storage: -20℃ ~ +60℃

Humidity

RH 0-90% (Non-condensing)

Touch life

> 50 million touches

Certification

CCC, FCC

Contrast ratio

800:1
