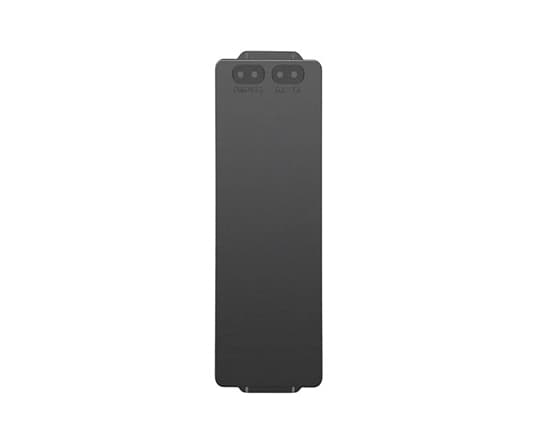

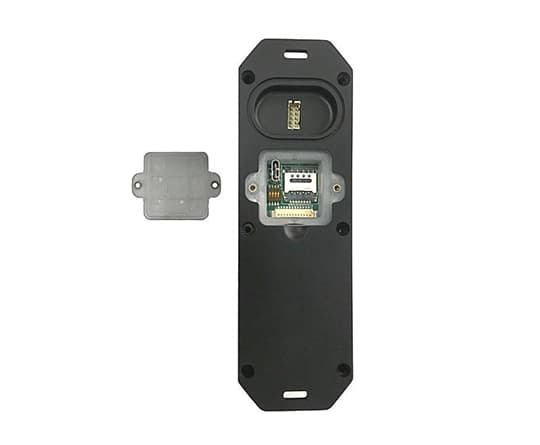

VT-IOT-Dongle Portable Gateway
VT-IOT-Dongle Portable Gateway
VT-IOT-Dongle Portable Gateway
VT-IOT-Dongle Portable Gateway
VT-IOT-Dongle Portable Gateway
VT-IOT-Dongle Portable Gateway

VT-IOT-Dongle Portable Gateway

◆ TI AM3352, 32-bit ARM Cortex-A8 processor
◆ Multiple communication technologies
◆ Reinforced design to adapt to rugged conditions
◆ Rich interfaces
◆ Portable, convenient installation
◆ Ultra-low power consumption
◆ SDK for customized development

Description
Specifications
Documentation

Vantron VT-IOT-Dongle is a cost-effective, portable gateway, featuring low power and high durability. It offers multiple networking modes such as Ethernet, 4G, Wi-Fi, Bluetooth, giving users much flexibility in connectivity.

Powered by TI AM3352 Cortex-A8 processor, the device is built to withstand tough environments with IP67 reinforcement, offering a power-saving solution for use in industrial areas. It also implements user interfaces with signals for 10/100 Base-T Ethernet, serial port, and power supply. Moreover, users can customize the system with the SDK provided.

Specifications
CPU
TI AM3352, 32-bit ARM Cortex-A8 low power processor, 600MHz
Memory
512MB DDR3L
Storage
16GB eMMC
Ethernet
1 x 100Mbps (alternative: 1 x SPI)
Wi-Fi & BT
On-board Wi-Fi 802.11 a/b/g/n/ac & BT 4.2
4G LTE
1 x Internal mini PCIe slot for 4G/LTE module
Serial port
1 x RS232/RS485
USB
1 x USB Type-C (OTG supported)
SIM slot
1 x Micro SIM slot
Antenna
Internal antennas
12-pin connector
1 x Serial debug port; 1 x SD signal
RTC
Supported
LED indicator
1 x Power indicator 1 x Status indicator 1 x TX indicator 1 x RX indicator
Dimensions
152mm x 48mm x 24.2mm
Weight
120g
Enclosure
Black plastic
Installation
Wall mounting
IP rating
IP67
Cooling mode
Fanless
Input
5V DC (Signal pins included in the user interface)
OS
VantronOS (Optional: Linux)
Custom development
SDK available, Python supported
Northbound protocol
MQTT
Temperature
Operating: 0℃~+50℃ Storage: -20℃~+70℃ ETR: -40℃~+85℃ (Optional)
Humidity
Operating and storage: RH 5%~95% at 25℃-35℃ (non-condensing)
Certification
FCC, UL, CE, PTCRB
Product Name
VT-IoT-Dongle Portable Low-consumption Edge Computing Gateway
Documentation
VT-IOT-Dongle Portable Gateway Datasheet - V1.5.pdf
VT-IOT-Dongle Portable Gateway Datasheet
