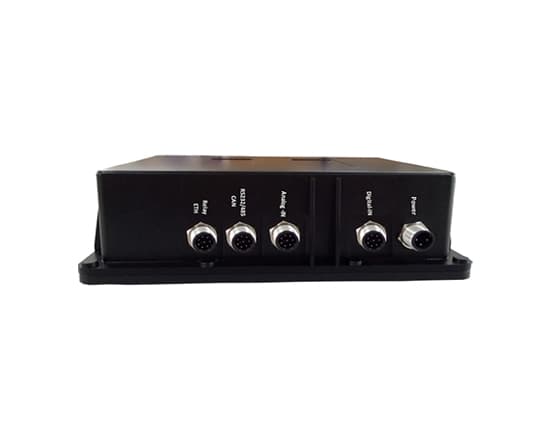

L335 Waterproof Outdoor Gateway

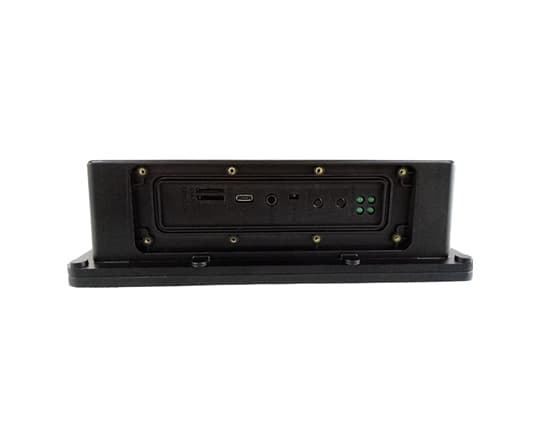

L335 Waterproof Outdoor Gateway
L335 Waterproof Outdoor Gateway
L335 Waterproof Outdoor Gateway
L335 Waterproof Outdoor Gateway
L335 Waterproof Outdoor Gateway

L335 Waterproof Outdoor Gateway

◆ TI AM335x, 32‑bit ARM Cortex-A8 processor
◆ Multiple communication technologies
◆ Rich interfaces
◆ Ultra-low power consumption
◆ Wide input voltage
◆ Wide temperature range
◆ Complete industrial design

Description
Specifications
Documentation

Vantron L335 industrial gateway is powered by AM3352 ARM Cortex-A8 processor that features rich peripheral interfaces for flexible expansion and as low as 5W power consumption in working mode to go through 12 weeks’ work after full charge, making it particularly suitable for application in remote areas. The gateway supports geofence setup so that users can define a radial boundary for it to track the device in real-time.

L335 adopts industrial design with guaranteed quality and reliability to offer an ideal solution for your IoT applications. It supports a variety of communication technologies including Ethernet, 3G/4G, NB-IoT, Wi-Fi and Bluetooth, ZigBee, GPS for different scenarios requiring multiple connectivity points. Meanwhile it supports connection to Vantron BlueSphere cloud platform for unified management to ease the efforts of users and improve productivity by real-time monitoring and tracking, OTA updates, remote maintenance, task assignment and follow-up.

Specifications
CPU
TI AM335x, 32-bit quad-core ARM Cortex-A8 processor, 600MHz
Memory
512MB DDR3L
Storage
16GB eMMC EEPROM 128Kb (MCU) + 1Kb (CPU) 1 x Micro SD slot
Ethernet
1 x M12 connector, 10/100Base-T
Cellular
1 x Mini PCIe for 3G/4G module (LTE CAT 1/M)
Wi-Fi & BT
On-board Wi-Fi 802. 11 b/g/n + BT 5.0 (Optional: BT 4.2)
ZigBee
Optional
GNSS
Optional: GPS/Beidou/Glonass/Galileo/QZSS
Antenna
Internal antennas (external antennas supported)
Serial port
1 x Serial debug port (audio jack: for debugging/local configuration) 1 x M12 connector with RS232, RS485, CAN 2.0b
USB
1 x Micro USB (OTG supported, USB to Ethernet connectivity supported)
Digital/Analog
2 x DI 2 x DO 2 x AI
Relay output
1 x Relay output
SIM slot
1 x SIM slot
Accelerometer
Supported
Temperature sensor
Supported (±0.5°C)
RTC
Supported
LED indicator
4 x Status indicator (charge/alive/report/power)
Button
1 x Battery switch (ON by default, to enable/disable power supply by the battery); 1 x Reset button; 1 x Restore button
OS
VantronOS
Custom development
SDK available
Upgrade
OTA upgrade
Add-on features
Geofence supported Power management of DC and battery monitor
Input
12V DC (6V-56V)
Battery
3.7V, 12800mAh chargeable battery, IP67 covered (Supports up to 12 weeks of work without solar input)
Dimensions
220mm x 144mm x 64.5mm
Enclosure
Black plastic
IP rating
IP67 (chemical resistant, UV resistant, Gravel bombardment proven)
Installation
DIN rail mounting/Magnetic mounting/Wall mounting
Temperature
Operating: -20°C ~ +70°C Storage: -20°C ~ +70°C (Optional: -40°C ~ +85°C)
Humidity
RH 5%-95% @20°C ~ 35°C (Non-condensing)
Cooling mode
Fanless
Certification
UL, FCC, CE, PCTRB
Product Name
L335 Waterproof Outdoor Low-consumption Edge Computing Gateway
Documentation
L335 Industrial Gateway Datasheet - V1.5.pdf
L335 Industrial Gateway Datasheet
