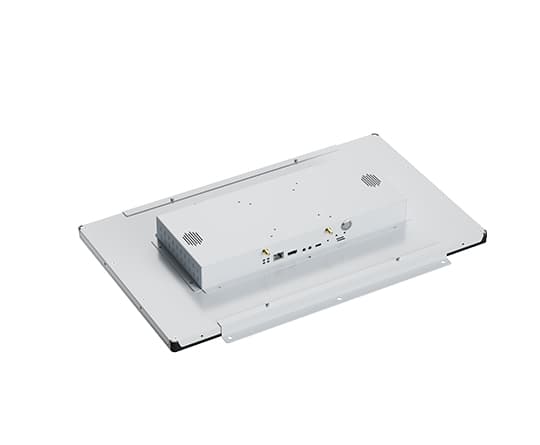

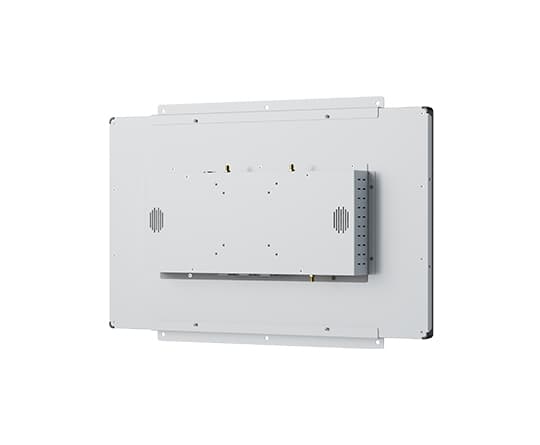

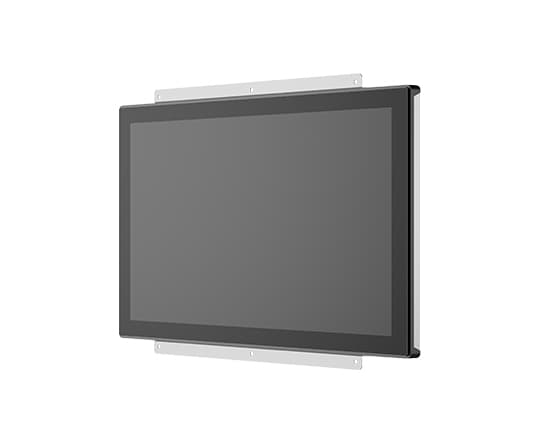

TPC215-RK88 21.5" Android All-in-one Panel PC
TPC215-RK88 21.5" Android All-in-one Panel PC
TPC215-RK88 21.5" Android All-in-one Panel PC
TPC215-RK88 21.5" Android All-in-one Panel PC
TPC215-RK88 21.5" Android All-in-one Panel PC
TPC215-RK88 21.5" Android All-in-one Panel PC
TPC215-RK88 21.5" Android All-in-one Panel PC
TPC215-RK88 21.5" Android All-in-one Panel PC

TPC215-RK88 21.5" Android All-in-one Panel PC

RK3288 Quad-core Cortex-A17 high-performance processor
◆ WIFI/BT/4G wireless communication access
◆ 21.5-inch TFT LCD, 16:9 aspect ratio, 500 nit
◆ Low power, fanless heatsink
◆ IP65 rated front panel
◆ Anti-UV design to ensure reliability in sunlight exposure
◆ VESA mount option available

Description
Specifications
Documentation

Vantron TPC215-RK88 is a 21.5” open-frame all-in-one panel PC, powered by RK3288 quad-core high-performance processor. It features a 21.5-inch 10-point PCAP touchscreen monitor with 16:9 aspect ratio and runs Android 10 operating system. TPC215-RK88 offers rich interfaces for connection of different peripherals and displays. It is very suitable to be applied in self-service kiosks and multi-media terminals. The brackets and VESA holes also allow users to flush mount the product into any suitable openings for industrial control.

Vantron TPC series all-in-one panel PCs offers an overall solution that integrates the touchscreen monitor, display, processor, and software operating system, making it a first choice in IoT applications.

Specifications
CPU
Rockchip RK3288, Quad-core ARM Cortex-A17, 1.6GHz (Max.)
Memory
2GB (Optional: 4GB)
Storage
16GB (Optional: 32GB) 1 x SD slot
Ethernet
1 x RJ45, 10/100/1000Mbps
Wi-Fi & Bluetooth
Wi-Fi 802.11 b/g/n + BT 4.0
4G LTE
1 x Mini PCIe for connection of the 4G module
21.5" TFT LCD
Contrast ratio: 1000:1
Resolution: 1920 x 1080 @60Hz
Aspect ratio: 16:9
Brightness: 500 nits
Viewing angle: 89/89/89/89 (U/D/L/R)
External display
1 x HDMI, up to 4K @60Hz
10-point PCAP touch screen
Surface hardness: 6H
Surface treatment: Anti-glare & anti-reflection (optional)
Cover lens: At least IK03 rated Light transmittance ratio: >85%
Audio
1 x 3.5mm combo audio jack Built-in dual-track speakers
USB
x USB 2.0 Type-C 6 x USB 2.0 Type-A
Serial port
6 x RS485/RS232
RTC
Supported
WDT
Supported
Button
1 x ON/OFF button
1 x Power indicator
1 x 4G indicator
1 x System indicator
1 x Wi-Fi indicator
OS
Android 10
Device management platform
BlueSphere MDM
OTA tool
BlueSphere OTA
Input
12V DC
Consumption
~25W
Dimensions
527.4mm x 314.4mm x 60.7mm
Installation
VESA mounting (75mm x 75mm) Side bracket mounting
Protective features
IP65, Anti-UV
Heat dissipation
Heatsink
Temperature
Operating: -20℃~+60℃ Storage: -20℃~+70℃
Documentation
Vantron TPC215 21.5” All-in-one Panel PC Datasheet - V1.5.pdf
TPC215 21.5” All-in-one Panel PC Datasheet
