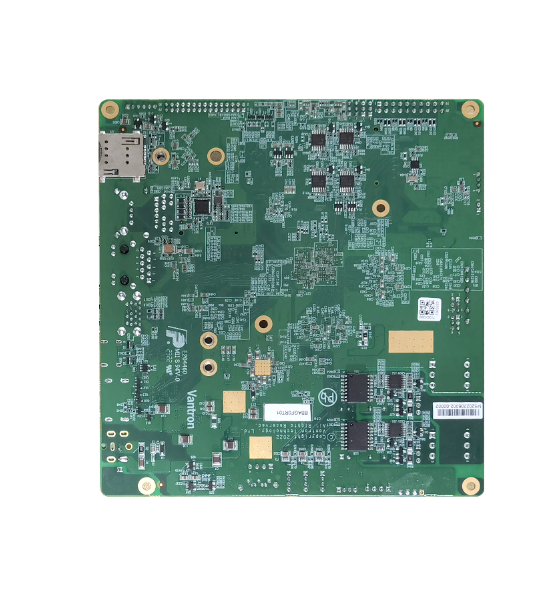

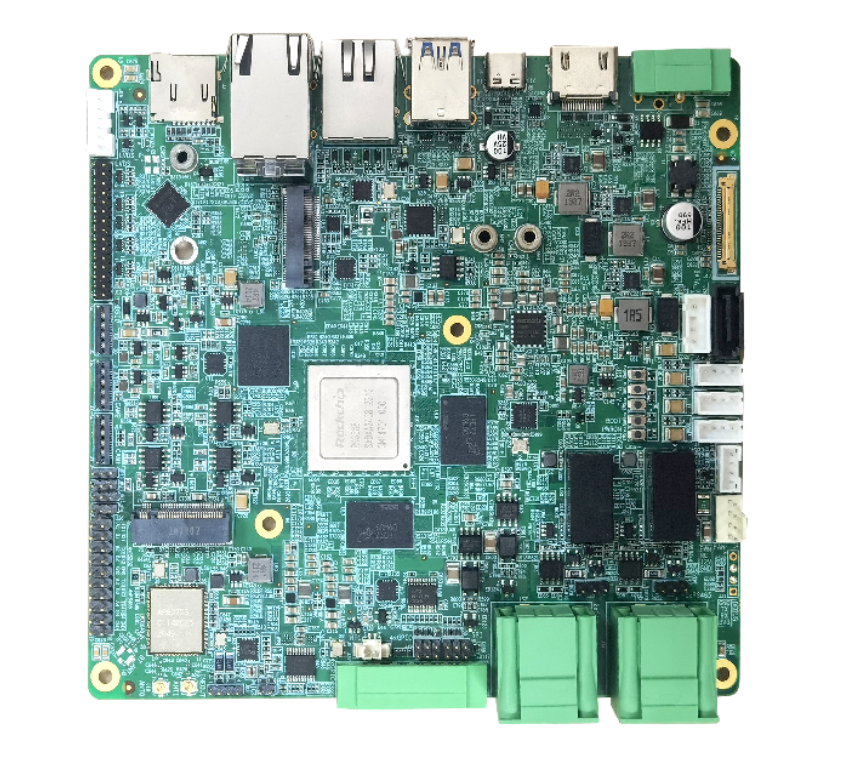

VT-SBC-3588 RK3588 ARM-based Single Board Computer
VT-SBC-3588 RK3588 ARM-based Single Board Computer
VT-SBC-3588 RK3588 ARM-based Single Board Computer
VT-SBC-3588 RK3588 ARM-based Single Board Computer
VT-SBC-3588 RK3588 ARM-based Single Board Computer
VT-SBC-3588 RK3588 ARM-based Single Board Computer

VT-SBC-3588 RK3588 ARM-based Single Board Computer

Features

◆ RK3588 Quad-core Cortex-A76 + Quad-core Cortex-A55 processor

◆ HDMI/eDP/MIPI DSI for high-quality display

◆ Rich interface for expansion

◆ Wi-Fi (6)/BT/4G/5G/ETH for communication

◆ Industrial-grade wide temperature design

◆ High computing power

◆ Deep learning acceleration

◆ Industrial longevity

Description
Specifications
Documentation

Vantron VT-SBC-3588 Single Board Computer is powered by Rockchip latest flagship RK3588 AIoT chipset that is equipped with an 8-core 64-bit CPU, an ARM Mali-G610 MP4 quad-core GPU, and a built-in AI acceleration NPU, capable of providing 6 TOPS computing power and supporting mainstream deep learning frameworks. With the development of the technology, there definitely will be a rising demand for AI-based products from the industrial control market, including but not limited to industrial robots, automated control, drones, etc., and VT-SBC-3588 comes into being.


The single board computer offers two Gigabit Ethernet ports, supports 2.4GHz/5GHz Wi-Fi 6 and Bluetooth 5.0, and provides an M.2 slot for 4G/5G expansion to keep communication uninterrupted. It also supports 8K video decoding and encoding to deliver optimized display performance.


Since the single board computer provides rich interfaces, a wide range of peripherals can be connected for extended applications like ARM PC, edge computing, cloud server, smart NVR, and other fields. Moreover, the different operating systems provide a stable and secure system environment for users.

Specifications
CPU
RK3588 Quad-core Cortex-A76 + Quad-core Cortex-A55, Max. 2.4GHz
GPU
ARM Mali-G610 MC4, Max. 1GHz
NPU
6 TOPS
Memory
LPDDR4 8GB (Optional: 16GB)
Storage
eMMC 32GB, up to 128GB SSD supported by an M.2 M-Key/M.2 B-Key (256GB ~ 1TB)
Ethernet
2 x RJ45, 1000Mbps
4G/5G
Supported (expansion by an M.2 B-Key)
Wi-Fi & Bluetooth
Wi-Fi 802.11 a/b/g/n/ac/ax + BT 5.0
Display
1 x HDMI 2.1 (4096 x 2160 @60Hz) 1 x Dual-channel LVDS (1920 x 1200 @60Hz) 1 x eDP (1920 x 1080 @60Hz) 1 x MIPI DSI (1920 x 1080 @60Hz)
Camera
2 x MIPI CSI
Audio
1 x Mic in connector 1 x Line out connector
USB
2 x USB 3.0 Host, Type-A 1 x USB 2.0 Host, Type-A 1 x USB Type-C OTG 3 x USB 2.0 connector
Serial port
2 x RS232/RS485 on the Phoenix terminal 4 x RS232/RS485 connector
TTL UART
1 x TTL UART, for debugging
Fan
1 x CPU fan connector
SIM card slot
1 x SIM card slot
RTC
Supported
Watchdog
Supported
M.2 slot
1 x M.2 M-Key (2260/2280), PCIe 3.0 x 4, for SSD 1 x M.2 B-Key (2242/3052), USB3.0/SATA3.0, for 4G/5G/SSD
GPIO
4 x GPIO on the Phoenix terminal 4 x GPIO connector
SPI
1 x SPI
CAN
2 x CAN on the Phoenix terminal
OS
Debian, Android
Language
English (default), Chinese
Device management platform
BlueSphere MDM (Android device only)
Input
1 x Power distribution block 1 x Power connector 12V/5A, 24V/3A
Dimensions
146.94mm x 140mm x 24.34mm
Temperature
Operating: 0℃ ~ +60℃ Storage: -40℃ ~ +85℃
Humidity
RH 0~95% (non-condensing)
Certification
FCC, CCC
Product Name
VT-SBC-3588 RK3588 ARM-based Single Board Computer
Documentation
VT-SBC-3588 Single Board Computer Datasheet - V1.7.pdf
VT-SBC-3588 Single Board Computer Datasheet
VT-SBC-3588 Single Board Computer User Manual - V1.5.pdf
VT-SBC-3588 Single Board Computer User Manual
