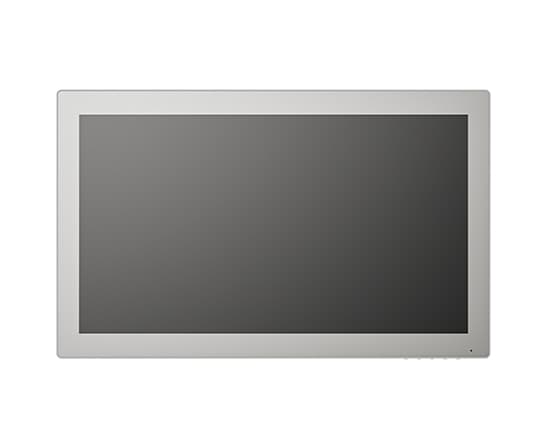

TMC156 15.6” Desktop/Wall-mountable Touchscreen Monitor
TMC156 15.6” Desktop/Wall-mountable Touchscreen Monitor
TMC156 15.6” Desktop/Wall-mountable Touchscreen Monitor
TMC156 15.6” Desktop/Wall-mountable Touchscreen Monitor
TMC156 15.6” Desktop/Wall-mountable Touchscreen Monitor
TMC156 15.6” Desktop/Wall-mountable Touchscreen Monitor

TMC156 15.6” Desktop/Wall-mountable Touchscreen Monitor

Features
◆ 15.6” TFT LCD, 10-point PCAP touchscreen

◆ Sleek appearance

◆ AR/AG touch screen available

◆ Flexible installation

◆ Excellent longevity (50,000H MTBF)

◆ Vanity free, easy integration

Description
Specifications
Documentation

Vantron Technology offers desktop/wall-mountable touchscreen monitors that vary in screen size from 15.6 inches to 27 inches and resolution from 1280 x 1024 to 1920 x 1080. When used with Vantron embedded computers, such touchscreen monitors will offer more flexible solutions for customers to meet the requirements of application in different scenarios, in particular in the medical health area.


TMC156 applies a 15.6-inch screen and features quick response time, large visible area and viewing angle to optimize the display performance. The screen is designed to be anti-fingerprint, and users have the option to equip the touchscreen with anti-glare and anti-reflection coatings that offer excellent visual experience and improve human-machine interaction accuracy. Moreover, TMC156 is designed with VESA hole patterns to simplify mounting onto a variety of stands, arms, walls or medical carts. The OSD controls allow users to change settings of the display in a more convenient manner to enhance user experience.

Specifications
Diagonal size
15.6" TFT LCD with LED backlight
Aspect ratio
16:9
Brightness
300 nits
Active area
344.232mm × 193.536mm
Contrast ratio
500:1
Number of colors
16.7 M
Response time
10ms
Viewing angle
Horizontal: 170° Vertical: 160°
Touch point
10-point PCAP touch screen
Touch control
Finger, stylus pen
Cover lens thickness
2mm
Surface treatment
Anti-fingerprint, tempered glass\ (Optional: Anti-glare / Anti-reflection)
Light transmittance ratio
>85%
Touch communication interface
USB 2.0
Video interface
1 x VGA 1 x HDMI
Audio interface
1 x Line in (Optional)
Dimensions
381.2mm x 248.1mm x 47.3mm
Weight
3.7kg
Installation
VESA mount (75 x 75mm)
OSD
Built-in OSD (set up with OSD keys) Controls: Menu, Up, Down, Select, Power
Power input
12V DC
Power consumption
<14W
Language
Chinese and English
Adjustment of brightness, contrast ratio and color temperature
Supported
Temperature
Operating: 0℃~+40℃ Storage: -20℃~+60℃
Humidity
10%~90% RH (non-condensing)
MTBF
50,000 hours
Warranty
3 years
ESD
ESD: ±4KV (contact) and ±8KV (air)
Certificate
CCC, FCC, CE, UL
Product
15.6'' Desktop/Wall-mountable Touch Monitor
Product Name
TMC156 15.6” Desktop/Wall-mountable Touchscreen Monitor
Documentation
Vantron TMC156 15.6” Desktop/ Wall-mountable Touchscreen Monitor Datasheet - V1.8.pdf
TMC156 15.6” Desktop/ Wall-mountable Touchscreen Monitor Datasheet
Vantron TMC Series Desktop/Wall-mountable Touchscreen Monitors QIG -V1.2.pdf
Vantron TMC Series Desktop/Wall-mountableTouchscreen Monitors QIG
Vantron TMC Series Desktop/ Wall-mountable Touchscreen Monitors User Manual -V1.2.pdf
TMC Series Desktop/Wall-mountable Touchscreen Monitors UM
