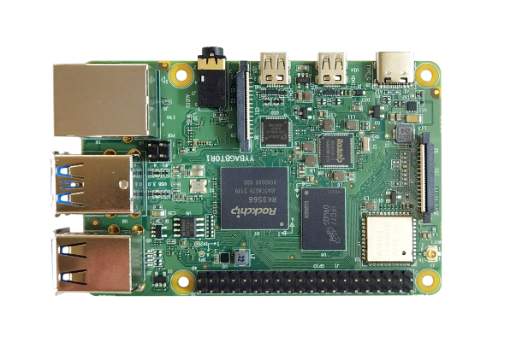

NiceLit Series RK3566/RK3568 Mini-sized ARM-based Single Board Computers
NiceLit Series RK3566/RK3568 Mini-sized ARM-based Single Board Computers
NiceLit Series RK3566/RK3568 Mini-sized ARM-based Single Board Computers
NiceLit Series RK3566/RK3568 Mini-sized ARM-based Single Board Computers

NiceLit Series RK3566/RK3568 Mini-sized ARM-based Single Board Computers

Features

◆ High-performance CPU & GPU
◆ Low power consumption
◆ Flexible expansion options
◆ Long service time
◆ Excellent display performance
◆ Compact size, complete function

Description
Specifications
Documentation

Vantron Technology recently unveiled NiceLit series to its embedded board family that features an efficient AI processing unit to provide quality computing power for lightweight AIoT applications.


NiceLit series is powered by Rockchip RK3568/RK3566 processor that integrates quad-core ARM Cortex-A55 CPU and Mali G52 GPU to provide optimized performance at lower power consumption, and offers 4K high-quality video decoding and 1080P encoding for better display performance. Compact as it is, yet this series provide a range of customer expansion options and supports multiple operating systems to meet the requirements of different application purposes.


NiceLit series targets at industrial customization markets of IoT endpoints and software platforms such as industrial panel PC, trail transit, banking, automotive control center, etc.

Specifications
Product Name
NiceLit Series ARM-based Single Board Computers
CPU
RK3568: Quad-core Cortex-A55, 2.0GHz (Max.) | RK3566: Quad-core Cortex-A55, 1.8GHz (Max.)
GPU
Mali-G52
Memory
4GB LPDDR4 (Optional: 8GB)
Storage
64GB eMMC 1 x Micro SD slot
Ethernet
1 x RJ45, 10/100/1000Mbps
Wi-Fi & BT
Wi-Fi 2.4GHz/5GHz & BT 5.0
Display
3568: 1 x Dual-lane MIPI DSI 2 x Micro HDMI, supporting 4K + 1080P (Extend mode supported) 3566: 2 x Micro HDMI, supporting 4K + 1080 (Duplicate mode supported)/3566
Camera
1 x MIPI CSI
Audio
1 x 3.5mm Combo audio jack
USB
2 x USB 2.0 Host, Type A 2 x USB 3.0 Host, Type A
GPIO
1 x GPIO/3568 3 x GPIO/3566
I2C
2 x I2C/3568 3 x I2C/3566
SPI
2 x SPI/3568 2 x SPI/3566
UART
5 x UART/3568 4 x UART/3566
CAN
2 x CAN/3568 NA/3566
PWM
NA/3568 2 x PWM/3566
Input
5V/3A DC, USB Type C
Operating system
Android 11, Debian 10
Device management platform
BlueSphere MDM (Android devices only)
OTA tool
BlueSphere OTA
Dimensions
85mm x 56mm x19.5mm
Temperature
Operating: -20℃~+70℃ Storage: -40℃~+85℃
Humidity
RH 5%-95% (Non-condensing)
Documentation
NiceLit Series Single Board Computers Datasheet - V1.8.pdf
NiceLit Series Single Board Computers Datasheet
VT-SBC-RK3568-NT Single Board Computer User Manual - V1.5.pdf
VT-SBC-RK3568-NT Single Board Computer User Manual
VT-SBC-RK3566-NT Single Board Computer User Manual - V1.4.pdf
VT-SBC-RK3566-NT Single Board Computer User Manual
