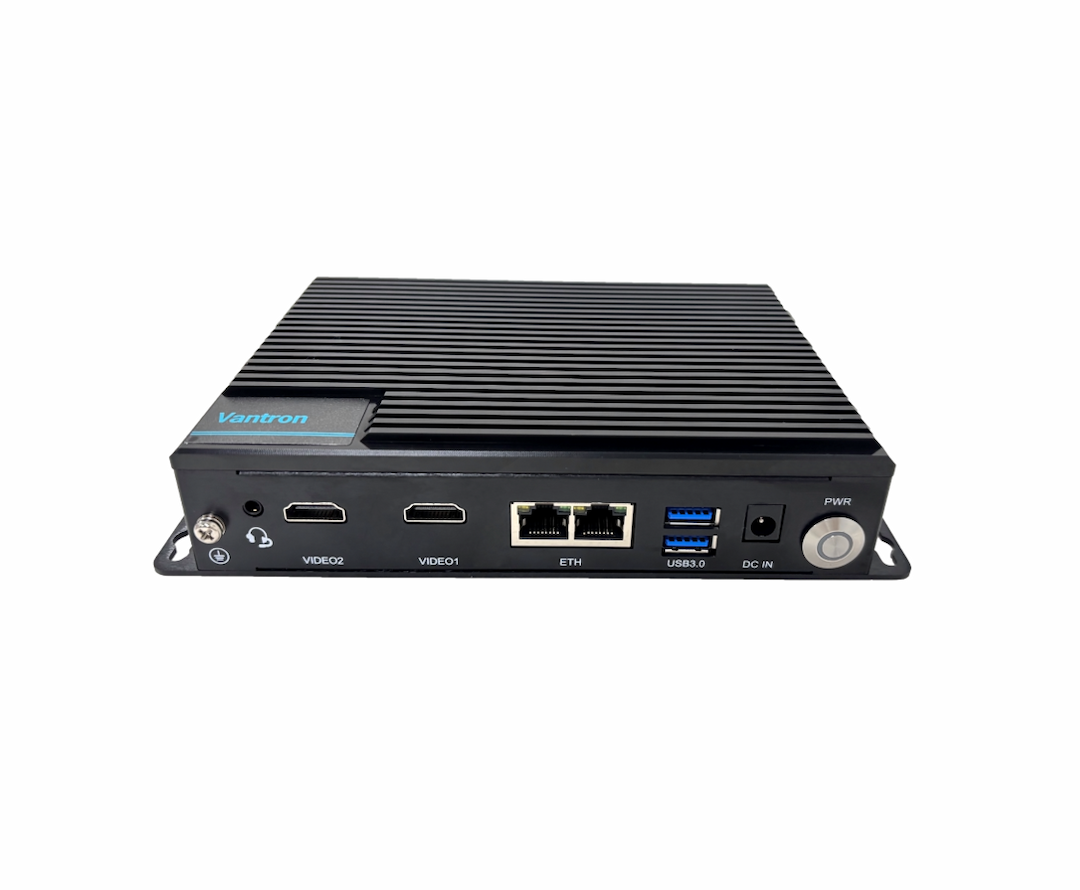

IBOX6425E ElkhartLake X86-based Windows Embedded Industrial Computer
IBOX6425E ElkhartLake X86-based Windows Embedded Industrial Computer
IBOX6425E ElkhartLake X86-based Windows Embedded Industrial Computer
IBOX6425E ElkhartLake X86-based Windows Embedded Industrial Computer
IBOX6425E ElkhartLake X86-based Windows Embedded Industrial Computer
IBOX6425E ElkhartLake X86-based Windows Embedded Industrial Computer
IBOX6425E ElkhartLake X86-based Windows Embedded Industrial Computer
IBOX6425E ElkhartLake X86-based Windows Embedded Industrial Computer

IBOX6425E ElkhartLake X86-based Windows Embedded Industrial Computer

Features

◆ Intel® Atom® quad-core Elkhart Lake x6425E processor

◆ HDMI/VGA for video output

◆ Rich interface for expansion

◆ Wi-Fi/BT/5G/ETH for communication

◆ Industrial-grade wide temperature design

◆ Ability to withstand harsh environments

◆ Industrial longevity

Description
Specifications
Documentation

Vantron IBOX6425E Embedded Industrial Computer is powered by Intel® Atom® Elkhart Lake x6425E high-performance processor that has four cores capable of delivering high computing power for various embedded applications while keeping the CPU performance at 12W of low power consumption. The device supports two Ethernet ports transmitting at 10/100/1000Mbps. As to internal expansion, it offers two M.2 B-Key slots, one for SSD expansion and the other for connection of either a Wi-Fi 802.11 a/b/g/n/ac and BT 5.0 module or a 5G module to keep communication uninterrupted.


The device comes with an HDMI interface and a VGA interface to optimize image display. Two serial ports are available to communicate with external devices to ensure a reliable, error-free data path.


As the device provides rich peripheral interfaces, a wide range of peripherals can be connected for extended applications, including barcode scanners, cameras, barcode printers and keyboard plates. Above all, its strong performance, reliable and stable quality, and excellent cost performance are second to none for smart business applications.

Specifications
CPU
Intel® Atom®, Quad-core Elkhart Lake x6425E, 3.0GHz (Max.)
GPU
Intel® HD Graphics 500
Memory
DDR4 4GB (Optional: 16GB)
Storage
32GB eMMC 1 x SATA slot SSD supported by an M.2 B-Key
Ethernet
2 x RJ45, 10/100/1000Mbps
5G
Supported (expansion by an M.2 B-Key)
Wi-Fi & Bluetooth
Wi-Fi 802.11 a/b/g/n/ac + BT 5.0 (expansion by an M.2 B-Key)
Display
1 x Standard HDMI 2.0b (4096 x 2160 @60Hz) 1 x VGA (1920 x 1080 @60Hz)
Audio
1 x 3.5mm combo audio jack
Serial port
2 x RS232/RS485/RS422
USB
2 x USB 3.0 Type-A 1 x USB 3.0 Type-C
SIM card slot
1 x SIM card slot
RTC
Supported
Watchdog
Supported
TPM
1 x TPM 2.0
M.2 slot
1 x M.2 B-Key (2242/2280) for SSD / VPU (an either-or option) 1 x M.2 B-Key (3042/3052) for Wi-Fi & BT / 5G (an either-or option)
From USB 3.0 Type-C
2 x USB 2.0 Type-A 2 x RS232/RS485 1 x CAN 8 x GPIO
Button
1 x ON/OFF button 1 x Reset button
LED
1 x ON/OFF LED indicator
OS
Windows 10 (IoT)
Input
1 x Power jack (12V/5A, 24V/3A)
Dimensions
171mm x 128mm x 38mm (Enclosure only) 196mm x 128mm x 38mm (With bracket)
Installation
Wall mounting DIN rail mounting (Optional)
Weight
750g
Shock test
IEC 60068-2-27
Water and dust resistance
IP40
Cooling mode
Fanless
Temperature
Operating: -20℃~+70℃ Storage: -40℃~+85℃
Humidity
Operating: RH 10%~90% Storage: RH 5%~95%
Certification
EMC 3 Class B, SRRC, RoHs ESD: ±4KV (contact) and ±8KV (air)
Product Name
IBOX6425E ElkhartLake X86-based Embedded Industrial Computer
Documentation
IBOX6425E Embedded Industrial Computer User Manual -V1.0.pdf
IBOX6425E Embedded Industrial Computer User Manual
Vantron IBOX6425E Embedded Industrial Computer Datasheet - V1.9.pdf
IBOX6425E Embedded Industrial Computer Datasheet
