To meet the customer's requirement for stable data acquisition and transmission in demanding welding environments, Vantron deployed the VT-M2M-IMX8MMN edge computing gateway, specifically engineered for high-interference industrial scenarios. Featuring a robust anti-interference architecture—such as 20 kV arcing protection and industrial-grade power management—the gateway maintains reliable operation even under severe voltage fluctuations and harsh environmental conditions. By enabling local data processing at the edge and supporting seamless cloud integration, the solution minimizes unplanned downtime, enhances operational safety, and improves overall efficiency in welding workshop operations.

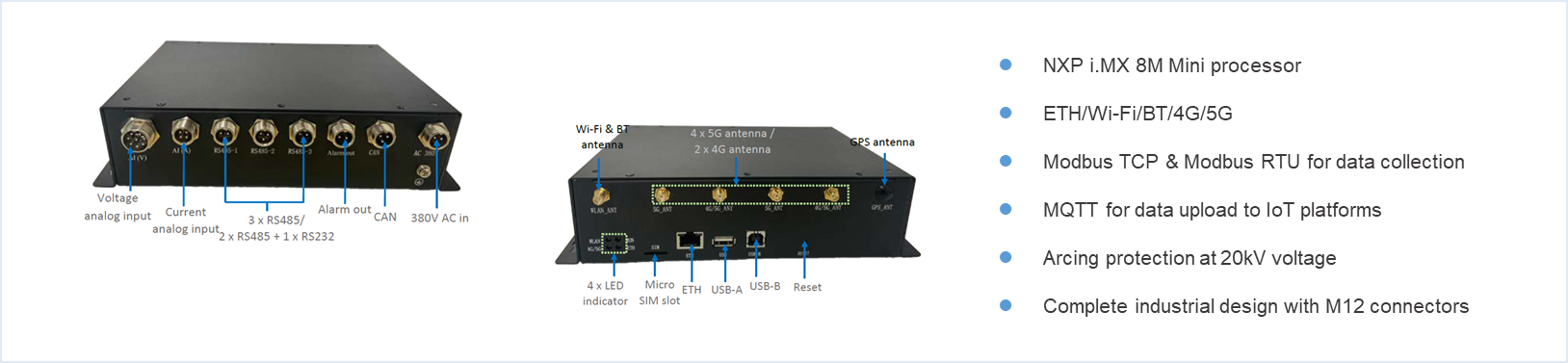

1. Flexible Installation: It supports wall-mounted and DIN-rail configurations, allowing easy adaptation to diverse on-site layouts. Its IP40-rated enclosure effectively protects the internal mainboard from electrostatic discharge caused by accumulated metal dust and other production residues commonly found in welding facilities.

2. Industrial Reliability: Built entirely with industrial-grade components, the system is designed to operate reliably across a wide range of industrial conditions. An integrated industrial power management chip enables safe and efficient conversion from a 380 V industrial power source to the 12 V supply required by the mainboard, ensuring long-term electrical stability.

3. Arcing Protection at 20kV Voltage: To further enhance resistance to electrical disturbances, the gateway incorporates a reed relay positioned ahead of the voltage acquisition circuit, capable of withstanding voltage surges of up to 100,000 V. This design provides repeated protection against high-voltage shocks, significantly improving system durability in high-energy welding applications.

In addition, Vantron offers optional high-voltage and low-voltage analog input modules, allowing the system to accommodate a wide range of signal types and data collection requirements. This modular expandability ensures that the solution can be easily tailored to evolving monitoring needs without redesigning the core platform.
