High-Brightness Drive-Thru Menu Board for Immersive QSR Experience
To meet the rising demand for digital engagement in Quick Service Restaurants (QSR), Vantron provided a customized high-performance outdoor display solution featuring 32" and 55" high-brightness monitors, ensuring 24/7 reliability and superior sunlight readability for a premier US digital signage provider.
Location
USA
Industry
Retail
Project Type
Off-the-Shelf
Devices Deployed
32’’ & 55’’ Outdoor Touch Monitor, HDBaseT Extender Kit
Download
Background

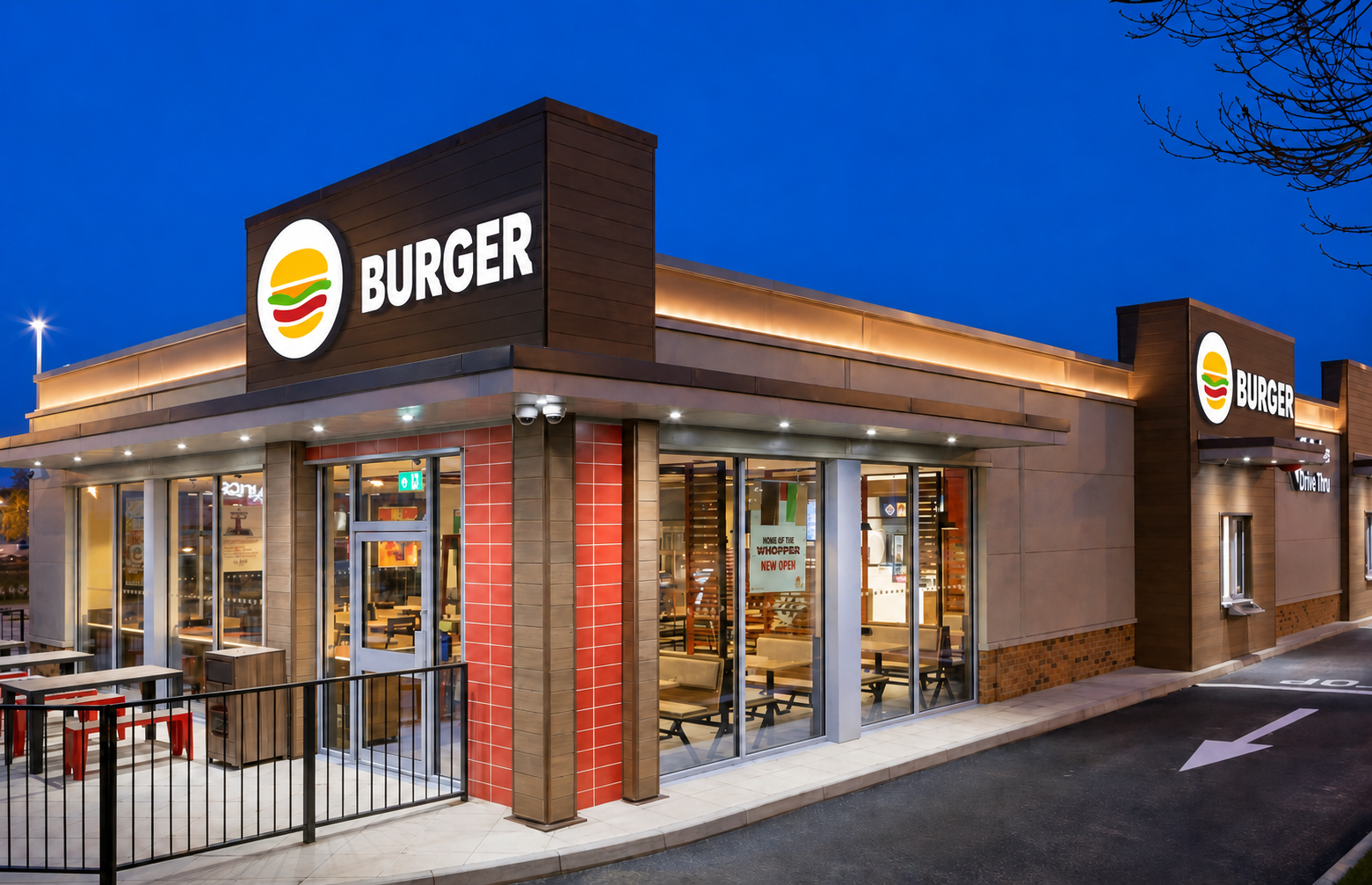

The client is a premier provider of digital signage and interactive solutions in the United States, specializing in the Quick Service Restaurant (QSR) sector, including drive-thrus and automated kiosks. Operating in diverse and harsh environments, the business faced several critical challenges: protecting hardware against environmental extremes, ensuring visibility under direct sunlight, and managing high-definition content over long distances. As digital transformation accelerates, the client required a more robust, high-performance outdoor display system.
Solution
The client chose Vantron for its superior customer service and high-quality industrial product features. To address the client's challenges, Vantron delivered a tailored solution based on its standard large-sized industrial touch displays, which significantly accelerated the sampling and delivery process.

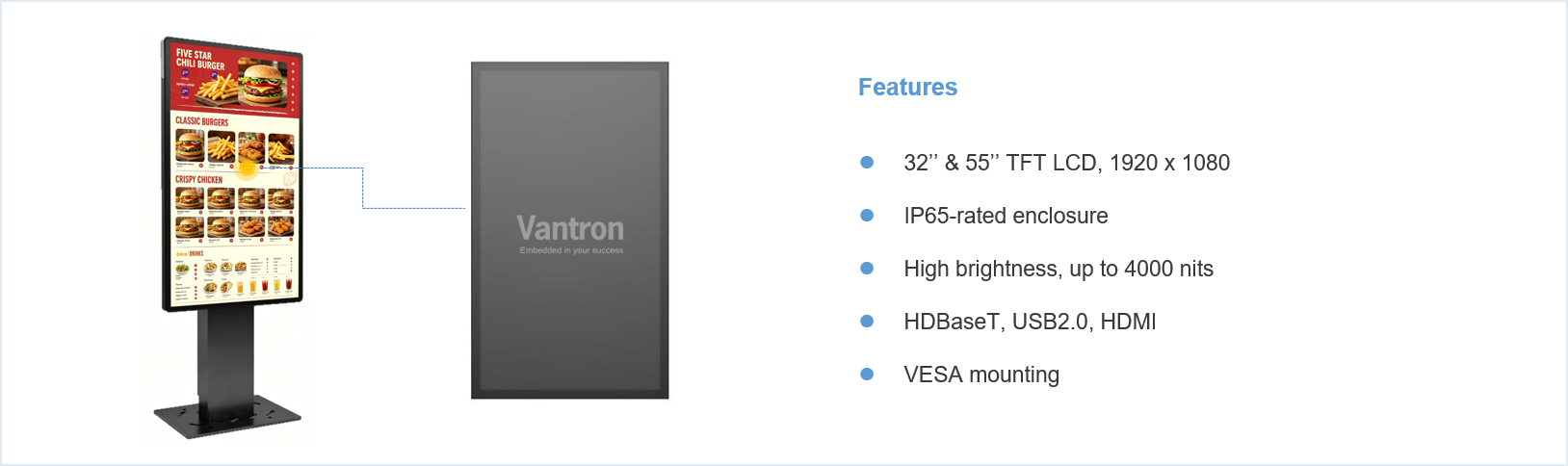

1. Superior Sunlight Visibility: Vantron delivered 32" and 55" outdoor touchscreen monitors with ultra-high brightness of 3000 nits and 4000 nits respectively, ensuring clear, vivid content even under direct sunlight glare.
2. Extended Signal Reach: The solution includes Vantron’s standardized HDBaseT Extender Kit, allowing for stable, high-definition video transmission over long distances via the HDBaseT (Ethernet) interface. This allows operators to update seasonal menus, pricing, and product availability in real time from a remote host.
3. Rugged Durability: These high-brightness monitors feature an IP65-rated enclosure and thermal management with PWM-controlled fans. This ensures stable 24/7 operation while providing full protection against water, dust, moisture, and insects.
4. Seamless Integration: The mechanical design supports VESA mounting (300x300mm for 32" and 400x400mm for 55"), allowing for flexible deployment across various retail scenarios.
Benefits
By utilizing pre-validated 32" and 55" display architectures and standard HDBaseT kits, Vantron drastically reduced development lead times and enabled rapid deployment of 1,000 units per size annually.
The high-resolution displays, combined with animated graphics and video content, have transformed the client’s menu boards into engaging digital hubs that successfully capture customer attention. The client noted that the superior brightness not only enhances menu readability but also increases ordering efficiency and brand satisfaction.
