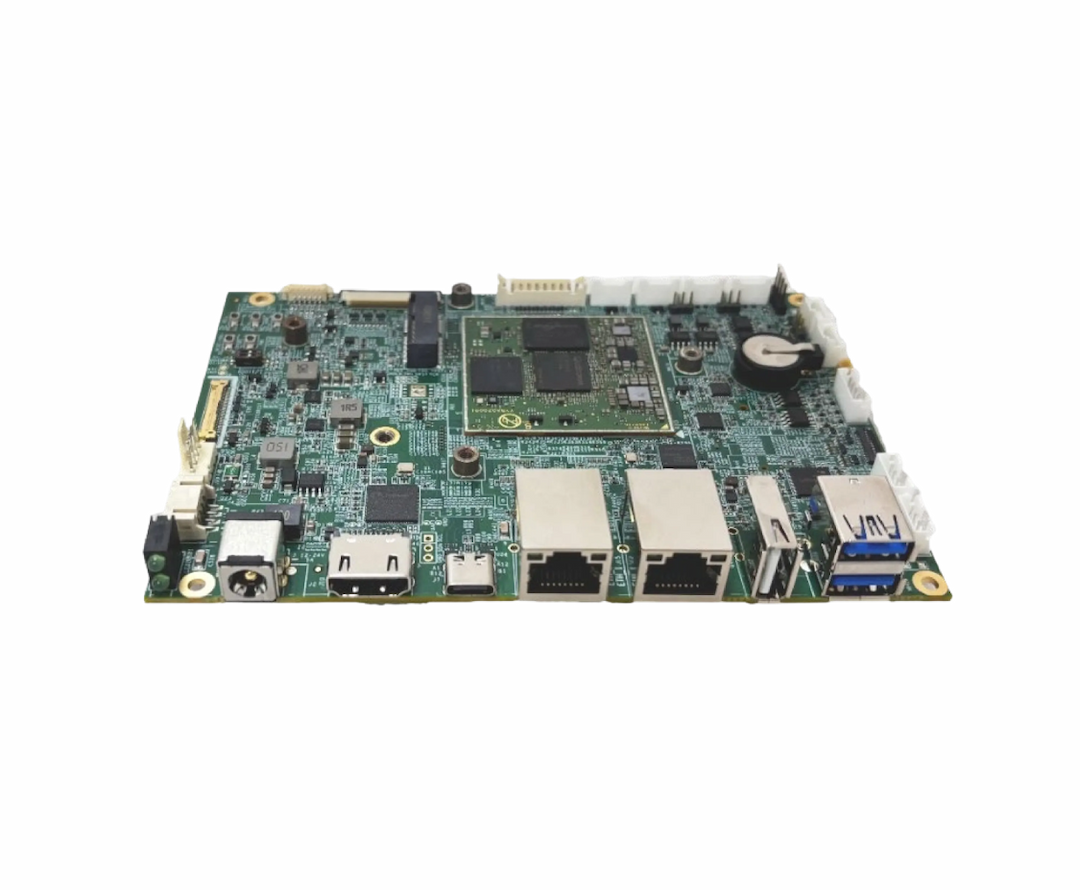

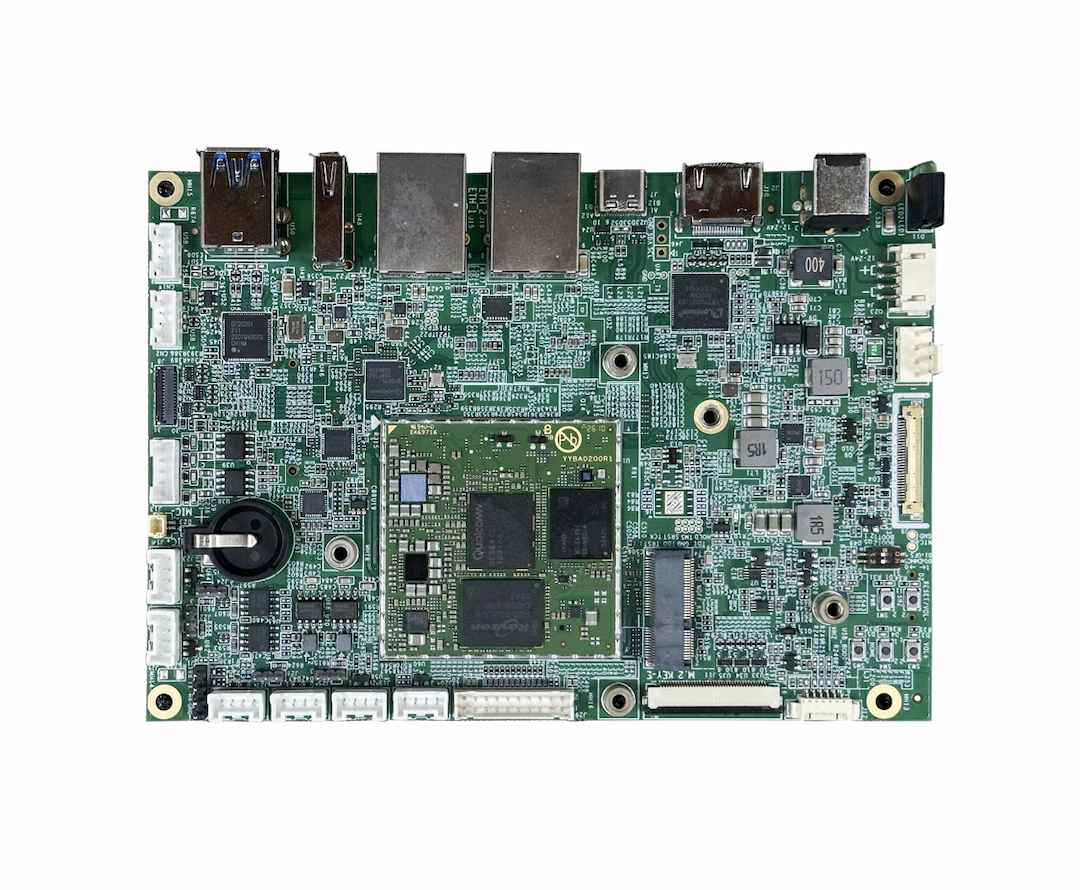

VT-SBC-VOSM6490-EVB QCS6490 Evaluation Board

VT-SBC-VOSM6490-EVB QCS6490 Evaluation Board

• Qualcomm high-performance, low-power edge AI processor
• Up to 12 TOPS NPU for efficient real‑time inference
• Dual GbE, Wi-Fi & BT for flexible connectivity
• Rich I/O: USB, RS232/485, UART, I2C, CAN, GPIO
• Single video output via MIPI DSI/eDP/HDMI@1080p
• M.2 slots for flexible expansion

Description

Specifications

Resources

The VT-SBC-VOSM6490-EVB evaluation board is based on Vantron’s high-performance VOSM6490 system-on-board, offering a carrier board that implements diverse interfaces to facilitate the use of VOSM6490. Powered by the Qualcomm QCS6490 chipset, it features an octa-core Kryo 670 CPU cluster running at up to 2.7 GHz, an AdrenoTM 643 GPU, and a HexagonTM NPU, delivering 12 TOPS of AI processing. This combination provides substantial compute performance for intensive edge-AI workloads while maintaining efficient power consumption.

The evaluation board supports dual GbE ports, Wi-Fi, and Bluetooth for flexible connectivity. It offers extensive peripheral interfaces,including USB, PCIe, GPIO, RS232/485, CAN, and audio channels, supporting a wide range of industrial and commercial IoT applications.

The board supports Android 15+, Windows 11 IoT, with Linux distributions available upon request. It also supports operation in extended temperature, making it well-suited for demanding applications such as human-machine interfaces (HMI), machine vision systems, autonomous mobile robots (AMR), and patient monitoring devices.

Specifications

Product Name

VT-SBC-VOSM6490-EVB Qualcomm Single Board Computer

CPU

Qualcomm QCS6490 Kryo 670 processor: 1 x A78@2.7GHz, 3 x A78@2.4GHz, 4 x A78@1.9GHz

GPU

Qualcomm Adreno 643 GPU, Support OpenGL ES 3.2, Vulkan 1.x, OpenCL 2.0, DX FL12

NPU

Qualcomm Hexagon 770 NPU, up to 12 Dense TOPS

Memory

8GB LPDDR5

Storage

64GB eMMC 5.1; 1 x Micro SD slot; Optional UFS 2.2/3.1, up to 512GB; Expansion via M.2 M-Key supported

Ethernet

2 x RJ45, 10/100/1000Mbps

Wi-Fi & Bluetooth

Optional (Expansion via M.2 E-key)

Video Processing

2160p@60 8-bit decoder for H.265/H.264; 2160p@30 8-bit encoder for H.265/H.264

Image Signal Processing

Qualcomm Spectra 570L ISP, up to 64MP@30fps ZSL

Digital Signal Processing

Qualcomm Hexagon DSP, 1980 MPPS

Display (Single output)

1 x 4-lane MIPI DSI D-PHY / 1 x HDMI 2.0 / 1 x 4-lane eDP 1.4, up to 2520 x 1080@144Hz

Camera

1 x 4-lane MIPI CSI D-PHY, up to 64MP@30fps ZSL

Audio

1 x A-Mic; 1 x Dual-channel 5W/8R speaker

1 x I²C TP header

USB

1 x USB 2.0 Type-A; 2 x USB 3.0 Type-A; 1 x USB 3.1 Type-C OTG (non-DP ALT mode); 2 x USB 2.0 connector (USB-5 muxed with M.2 E-Key)

COM

2 x RS232, up to 120Kbps; 2 x RS485, up to 250Kbps; 2 x UART (1 x LPI UART, 1 x Non-LPI UART), 3.3V, up to 1Mbps

Debug

1 x Debug UART (1.8V)

GPIO

4 x GPIO (2 x LPI GPIO, 2 x Non-LPI GPIO), 3.3V

CAN

2 x CAN FD

I²C

2 x I²C (1 x LPI I²C, 1 x Non-LPI I²C)

Expansion

1 x M.2 M-Key (2280), PCIe 3.0 x2 for NVMe SSD; 1 x M.2 E-Key (2230), PCIe 3.0 x1/USB 2.0 (muxed with USB-5)/UART/PCM for Wi-Fi & BT

SD slot

1 x Micro SD slot

RTC

1 x Coin battery holder (1225)

WDT

Integrated watchdog timer

Key

1 x Power button; 1 x Force USB boot button; 1 x Volume + button; 1 x Volume - / Reset button; 1 x Home button; 1 x Button connector

Switch

1 x 2-Bit boot switch

LED Indicator

1 x SOM power-on LED; 2 x User-defined LED

Input

12V~24V DC input, max. 60W; 1 x Power jack; 1 x 4-Pin power connector

Operating System

Android 15+, Windows 11 IoT, Linux upon request

Device Management

BlueSphere MDM (Optional for Android version)

Dimensions

149.63mm x 103.7mm x 24.5mm (EVB); 45mm x 45mm x 3mm (SOM)

Temperature

Operating: -20℃ ~ +60℃; Storage: -40℃ ~ +80℃

Humidity

5%~95% RH (Non-condensing)
