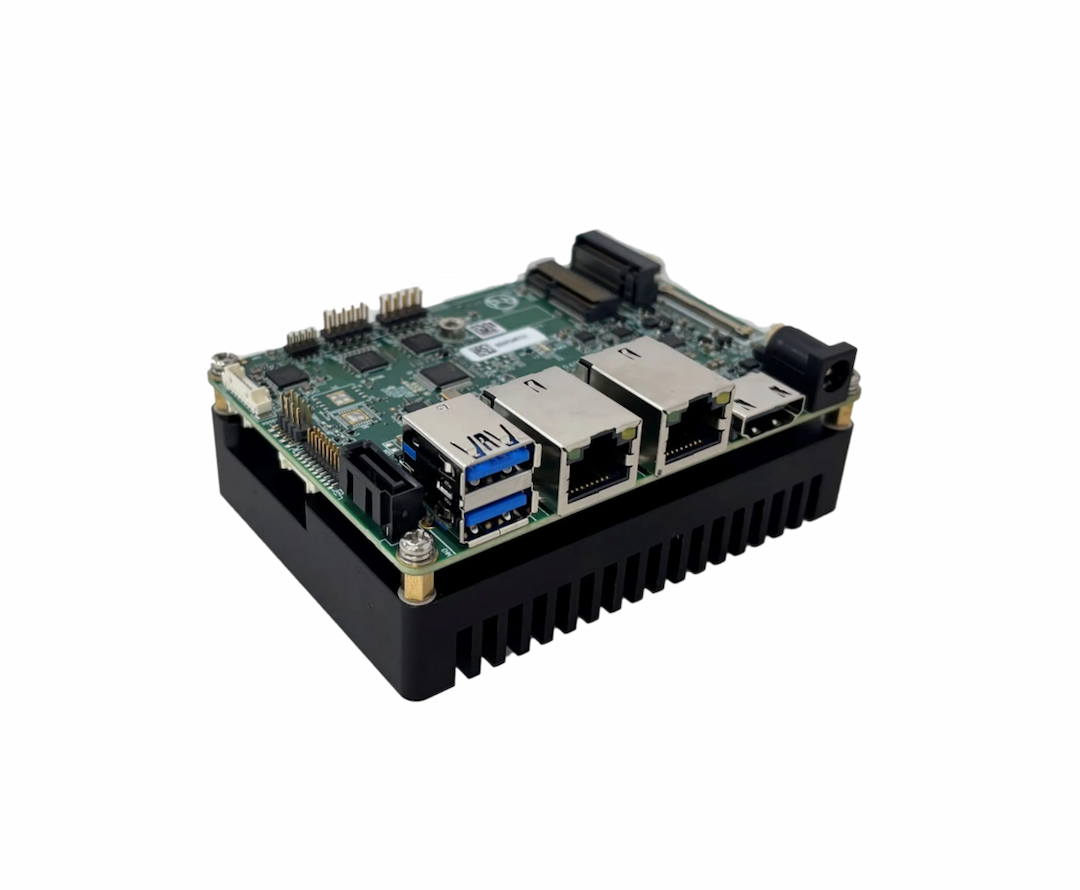

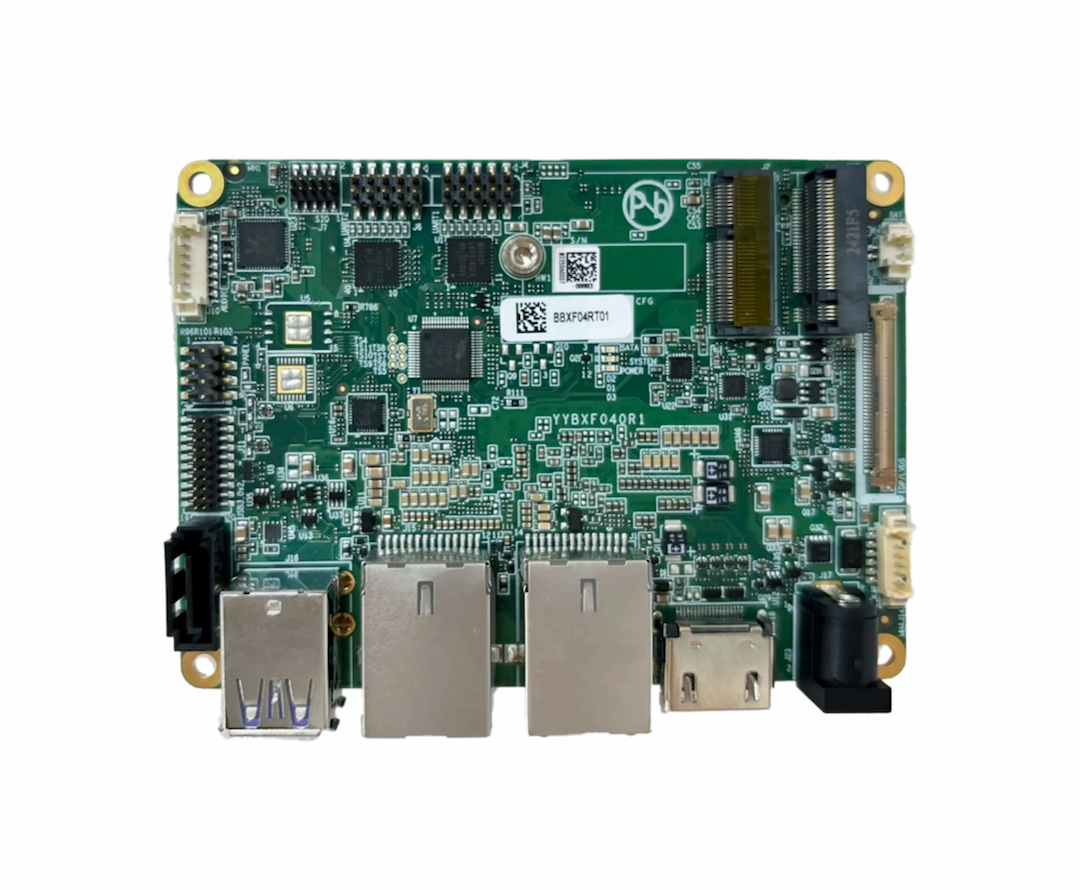

VT-PICOITX-EKT ElkhartLake Single Board Computer

VT-PICOITX-EKT single board computer is built on the robust Intel® Elkhart Lake platform (J6412/6425E), delivering optimal performance via a quad-core, quad-thread structure with up to 3.0GHz turbo frequency and 9W/10W TDP in a space-saving PICO-ITX form factor (2.5”). The HDMI port, coupled with the LVDS/eDP multiplexer drives two independent displays, delivering up to 4K resolution—ideal for digital signage, kiosks and compact HMI solutions. The UHD Graphics GPU supports advanced graphics APIs such as OpenGL, OpenCL, DirectX, and Intel® Quick Sync Video, providing exceptional graphics performance for a range of applications. The 6425E variant offers wide-temperature support(-40°C to +70°C) for reliable operation in harsh environments.

Measuring just 100mm × 72 mm, VT-PICOITX-EKT packs dual 2.5GbE ports, high-speed USB 3.2, on-board TPM 2.0, and an M.2 E-Key (Wi-Fi/BT) plus an M.2 M-Key (SATA) for flexible expansions—perfect for edge computing, industrial control, and more. Ready-to-run Ubuntu and Windows drivers are pre-validated, minimizing the development time for AI inferencing, retail POS， and next-gen IoT gateways.
