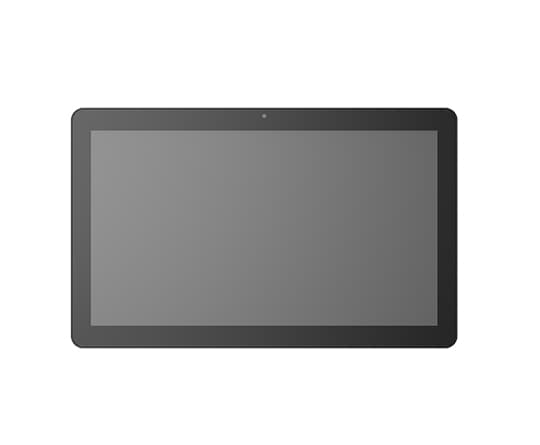

TPC185-RK3568 18.5" Android All-in-one Panel PC

TPC185-RK3568 18.5" Android All-in-one Panel PC

◆ RK3568 quad-core high-performance processor
◆ Android 11 system, Linux distributions available
◆ 10-point PCAP touch screen, gloves compatible
◆ 5MP front camera, stereo speaker
◆ Ethernet/Wi-Fi/Bluetooth/4G LTE supported
◆ Sleek appearance, white and black colors for choice
◆ Flexible installation (horizontal, vertical, desktop, wall mounting, floor mounting)

Description

Specifications

Documentation

Vantron TPC185-RK3568 is an 18.5” desktop all-in-one panel PC, powered by RK3568 quad-core high-performance processor. It features a 10-point PCAP touchscreen monitor with an aspect ratio of 16:9 and a resolution up to 1920 x 1080. TPC185-RK3568 offers multiple configuration options. Its rich interfaces allow for connection of different peripherals and displays, making it very suitable to be applied in self-service kiosks and multi-media terminals. The VESA pattern also allows users to mount and maintain the device more flexibly for industrial control.

Vantron TPC series all-in-one panel PCs offer an overall solution that integrates the touchscreen monitor, display, processor, and software operating system, making them a first choice in IoT applications.

Specifications

Product Name

TPC185-RK3568 18.5" Android All-in-one Panel PC

CPU

Rockchip RK3568, Quad-core ARM Cortex A55 processor, 1.8GHz (Max.)

Memory

4GB (Optional: 2GB)

Storage

32GB (Optional: 16GB) SSD expansion supported (M.2 B-Key)

Ethernet

1 x RJ45, 10/100/1000Mbps

Wi-Fi & BT

Wi-Fi 802.11 a/b/g/n/ac + BT 5.0

Cellular

4G LTE (Optional)

Display

18.5-inch TFT LCD

Resolution

1920 x 1080 @60Hz

Brightness

300 nits

Contrast ratio

1000:1

Aspect ratio

16:9

Viewing angle

89/89/89/89 (U/D/L/R)

Extended display

1 x HDMI, up to 4K @60Hz

10-point PCAP touch screen

Surface treatment (Optional)

Anti-glare (AG), anti-reflection (AR)

Surface hardness

Cover lens

At least IK03 rated

Light transmittance ratio

> 85%

Camera

Front camera, 5MP, fixed focus

Audio

1 x 3.5mm combo audio jack Built-in dual-track speakers (Max. 3W)

USB

1 x USB 2.0 Type-C 1 x USB 3.0 Type-A 1 x USB 2.0 Type-A

RTC

Supported

WDT

Supported

Button

1 x Power button

LED indicator

Optional: 1 x LED indicator for power and system status

Android 11 (Optional: Linux)

Device management platform

BlueSphere MDM for Android version (Optional)

OTA tool

BlueSphere OTA (Optional)

Input

12V DC 1 x Power jack

Consumption

~ 25W

Dimensions

457.96mm x 285.40mm x 50.00mm

Casing color

White/black

Installation

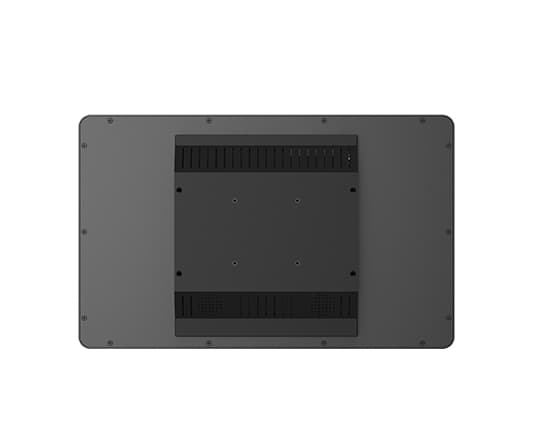

VESA mounting (75mm x 75mm, M4 x 10mm)

Weight

5kg

Heat dissipation

Fanless (Heatsink, housing)

Temperature

Operating: -10℃ ~ +50℃ Storage: -20℃ ~ +70℃

Humidity

Operating: 20%-80% RH (Non-condensing) Storage: 10%~90% RH (Non-condensing)

Certification

CCC, FCC

Warranty

2 years

Documentation

Vantron TPC185-RK3568 18.5” All-in-one Panel PC Datasheet - V1.5.pdf

TPC185-RK3568 18.5" Android All-in-one Panel PC Datasheet
